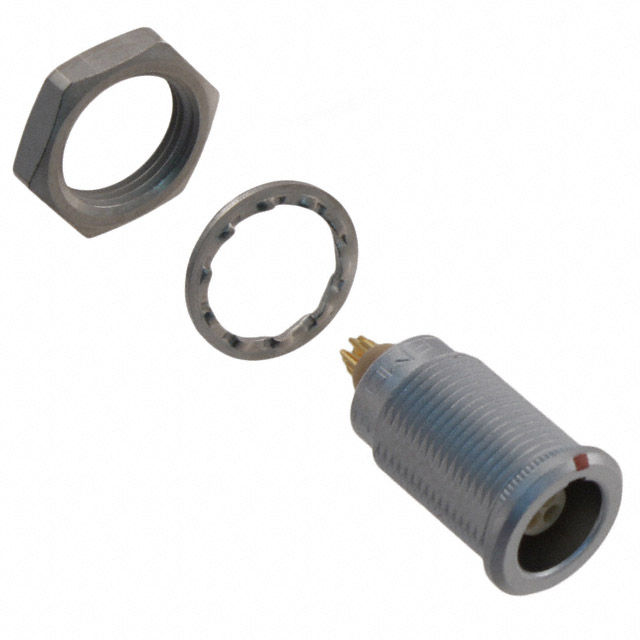

EGG.00.303.CLL

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.00.303.CLL	EGG.00.303 Series

Color	Silver	Black, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	303
Shielding	Shielded	Shielded

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Feature	Current Rating (Amps)	Connector Type	Shell Material	Color	Primary Material	Shielding	Insert Material	Contact Finish - Mating	Shell Size - Insert	Ingress Protection	Orientation	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Finish
LEMO EGG.00.303.KLL	59 Áin	1.5 Ám	Bronze	Bulkhead - Rear Side Nut	3 A	Receptacle, Female Sockets	Brass	Black	Metal	Shielded	Polyetheretherketone (PEEK)	Gold	303	IP50	G	UL94 V-0	-55 °C	250 °C	Push-Pull
LEMO EGG.00.303.CLL	59 Áin	1.5 Ám	Bronze	Bulkhead - Rear Side Nut	3 A	Receptacle, Female Sockets	Brass	Silver	Metal	Shielded	Polyetheretherketone (PEEK)	Gold	303	IP50	G	UL94 V-0	-55 °C	250 °C	Push-Pull	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources
