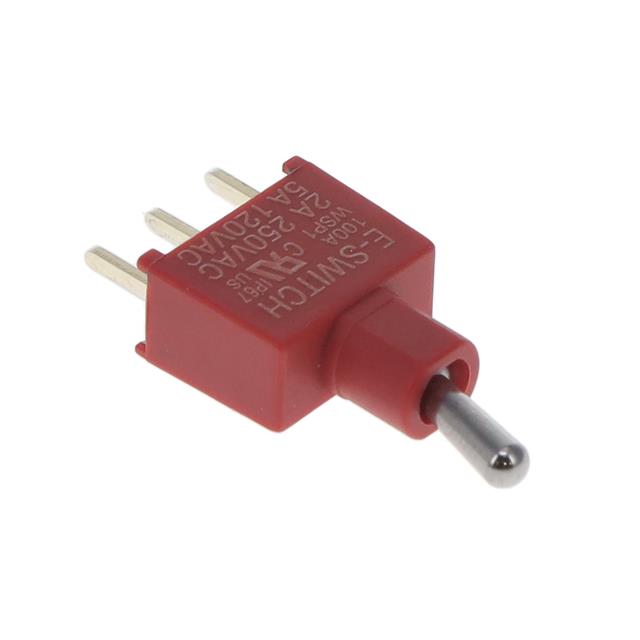

100AWSP1T2B4M2QE

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

100AWSP1T2B4M2QE

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100AWSP1T2B4M2QE	100AWSP1 Series

Actuator Length [x]	7.62 mm	0.5 - 10.55 in
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded, 1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole, Vertical, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 in
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100AWSP1 Series

SWITCH TOGGLE SPDT 5A 120V

Part	Voltage Rating - DC	Electrical Life	Ingress Protection	Current Rating (Amps)	Circuit	Bushing Thread	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Length [x]	Features	Actuator Material	Actuator Type	Mounting Type	Voltage Rating - AC	Illumination	Panel Cutout Dimensions [diameter]
E-Switch 100AWSP1T1B4M6QE	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	0.5 in	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Through Hole, Right Angle	120 V	Non-Illuminated
E-Switch 100AWSP1T2B4VS3QE	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	7.62 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Through Hole	120 V	Non-Illuminated
E-Switch 100AWSP1T2B1M1REH	20 V	30000 Cycles	IP67 - Dust Tight, Waterproof	0.4 VA	SPDT	1/4-40	On-On	-30 ░C	85 °C	Solder Lug	5.47 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round		20 V	Non-Illuminated	0.25 in
E-Switch 100AWSP1T1B4M7RE	20 V	30000 Cycles	IP67 - Dust Tight, Waterproof	0.4 VA	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	0.5 in	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Right Angle, Through Hole, Vertical	20 V	Non-Illuminated
E-Switch 100AWSP1T1B4VS21RE	20 V	30000 Cycles	IP67 - Dust Tight, Waterproof	0.4 VA	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	0.5 in	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Through Hole	20 V	Non-Illuminated
E-Switch 100AWSP1T2B1M7QEH	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	1/4-40	On-On	-30 ░C	85 °C	PC Pin	5.08 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Panel Mount, Right Angle, Vertical	120 V	Non-Illuminated	0.25 in
E-Switch 100AWSP1T2B4M7QE	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	7.62 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Right Angle, Through Hole, Vertical	120 V	Non-Illuminated
E-Switch 100AWSP1T1B1M1RE	20 V	30000 Cycles	IP67 - Dust Tight, Waterproof	0.4 VA	SPDT	1/4-40	On-On	-30 ░C	85 °C	Solder Lug	10.41 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round		20 V	Non-Illuminated	0.25 in
E-Switch 100AWSP1T1B1M2QEH	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	1/4-40	On-On	-30 ░C	85 °C	PC Pin	10.55 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round		120 V	Non-Illuminated	0.25 in
E-Switch 100AWSP1T2B1M1QEH	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	1/4-40	On-On	-30 ░C	85 °C	Solder Lug	5.08 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round		120 V	Non-Illuminated	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.44
		10	$ 3.08
		25	$ 2.92
		54	$ 2.78
		108	$ 2.65
		270	$ 2.53
		540	$ 2.32
		1026	$ 2.21

Description

General part information

100AWSP1 Series

Toggle Switch SPDT Through Hole
