Description
General part information

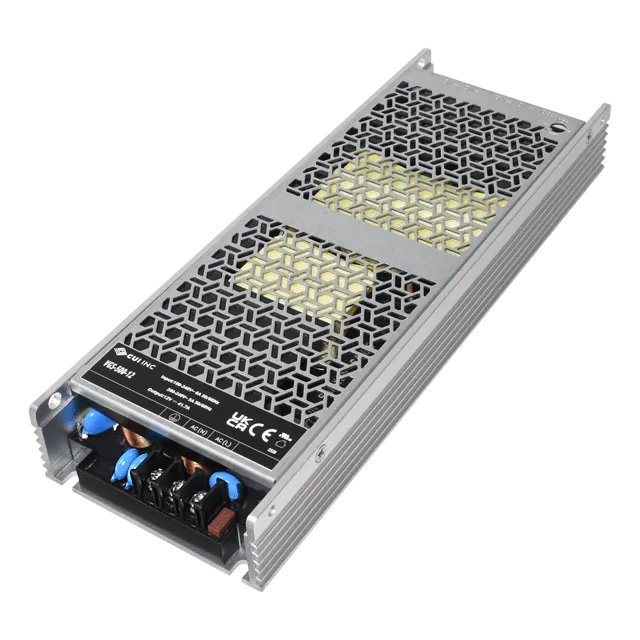

VGS-500-36
Enclosed AC DC Converters 1 Output 36V 85 ~ 305 VAC, 120 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VGS-500-36 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UKCA, cURus |
| Current - Output 1 | 13.9 A |
| Efficiency | 95 % |
| Features | Baseplate, PFC, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 500 W |
| Size / Dimension Height | 1.22 in |
| Size / Dimension Length | 9.13 in |
| Size / Dimension Width | 3.19 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
