Description
General part information

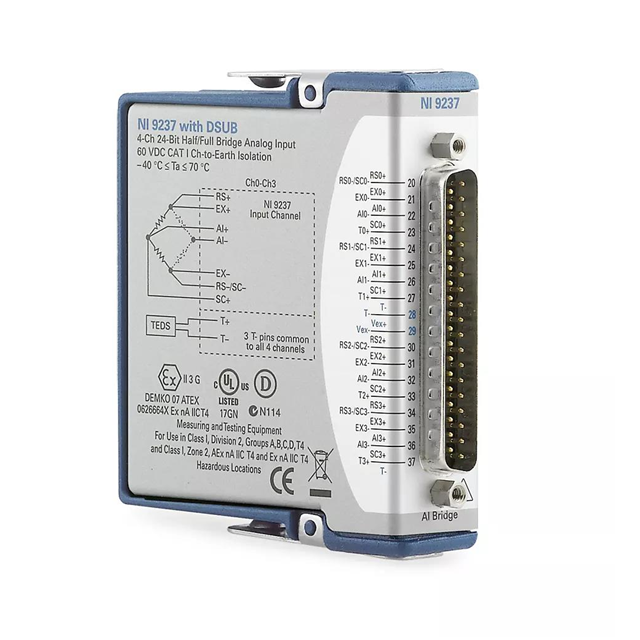

780264-02
Load, Pressure, Strain, Torque Module
Technical Specifications
Parameters and characteristics for this part
| Specification | 780264-02 |
|---|---|
| Front Connection | D-Sub |
| Function | Strain, Bridge, Torque, Pressure, Load |
| Input Resolution | 24 Bits |
| Input Types | Analog (Differential), Analog |
| Input Voltage (Max) | 5.25 V |
| Input Voltage (Min) | -0.25 V |
| Number of Inputs | 4 |
| Sampling Rate (Per Second) | 50 kHz, 50 kHz |
| Type | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
