HS2P5F20-BP

Active

Switchcraft Inc.

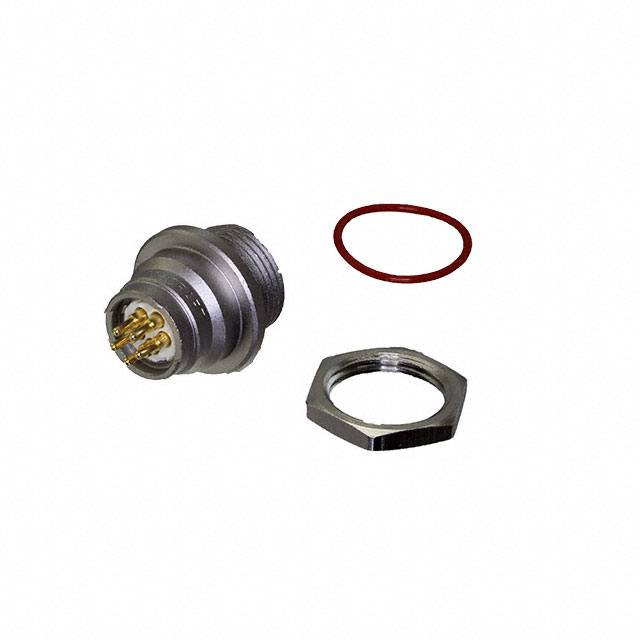

CONN RCPT FMALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P5F20-BP	HS2P5F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	-	UL94 HF-1
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 5POS GOLD SOLDER

Part	Shell Material	Insert Material	Voltage Rating	Ingress Protection	Fastening Type	Mounting Type	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shielding	Contact Finish - Mating	Connector Type	Applications	Orientation	Color	Primary Material	Termination	Mounting Feature	Material Flammability Rating
Switchcraft Inc. HS2P5F20-BP	Copper Alloy	Liquid Crystal Polymer (LCP)	125 VAC	IP66, IP67, IP68	Push-Pull	Panel Mount, Through Hole	Electroless Nickel	135 °C	-40 °C	Copper Alloy	Shielded	Gold	Receptacle, Female Sockets	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Keyed	Silver	Metal	Solder	Bulkhead - Front Side Nut
Switchcraft Inc. HS2P5F20	Copper Alloy	Liquid Crystal Polymer (LCP)	125 VAC	IP66, IP67, IP68	Push-Pull		Electroless Nickel	135 °C	-40 °C	Copper Alloy	Shielded	Gold	Receptacle, Female Sockets	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Keyed	Silver	Metal	Crimp, Solder Cup	Bulkhead - Rear Side Nut	UL94 HF-1
Switchcraft Inc. HS2P5F20-BPE	Copper Alloy	Liquid Crystal Polymer (LCP)	125 VAC	IP66, IP67, IP68	Push-Pull	Panel Mount, Through Hole	Electroless Nickel	135 °C	-40 °C	Copper Alloy	Shielded	Gold	Receptacle, Female Sockets	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Keyed	Silver	Metal	Solder	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 22.28

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder
