R142077742
ActiveRadiall USA, Inc.

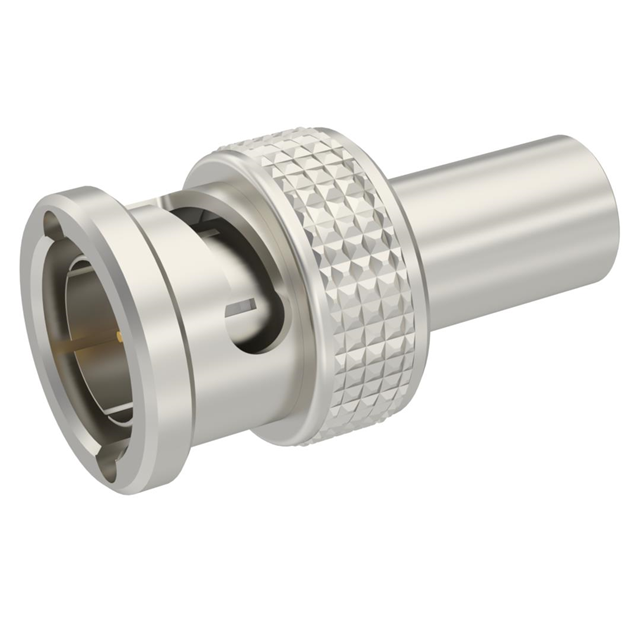

BNC 75 HDTV / STRAIGHT PLUG CRIM
Deep-Dive with AI
Search across all available documentation for this part.
R142077742
ActiveRadiall USA, Inc.
BNC 75 HDTV / STRAIGHT PLUG CRIM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R142077742 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-179, Belden 179DT |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 11.68 | |
Description
General part information
R142077742
BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
