BC46TBCP

Active

TPI (Test Products Int)

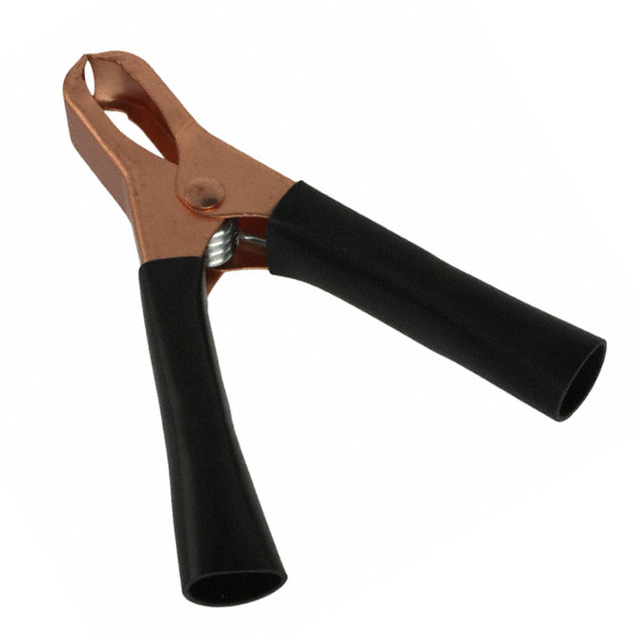

BATTERY CLIP STEEL INSUL 50A

Search across all available documentation for this part.

Active

TPI (Test Products Int)

BATTERY CLIP STEEL INSUL 50A

Technical Specifications

Parameters and characteristics for this part

Specification	BC46TBCP

Color	Black
Current Rating (Amps)	50 A
Insulation	Insulated Sleeve
Jaw Opening	1.125 "
Jaw Opening	28.58 mm
Jaw Opening
Length	73.15 mm
Length	2.88 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Plating	Copper
Quantity	1 Box
Termination	Crimp or Solder
Type	Battery Terminal Clamp, Miniature

BATTERY CLIP STEEL INSUL 50A

Part	Color	Jaw Opening	Jaw Opening	Jaw Opening	Length	Length	Current Rating (Amps)	Termination	Material - Insulation	Quantity	Plating	Type	Insulation
TPI (Test Products Int) BC46TBCP	Black	1.125 "	28.58 mm		73.15 mm	2.88 in	50 A	Crimp or Solder	Poly-Vinyl Chloride (PVC)	1 Box	Copper	Battery Terminal Clamp, Miniature	Insulated Sleeve

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 A Insulated Sleeve Battery Terminal Clamp, Miniature Test Clip Steel 1.125" (28.58mm) 1 1/8"
