Description
General part information

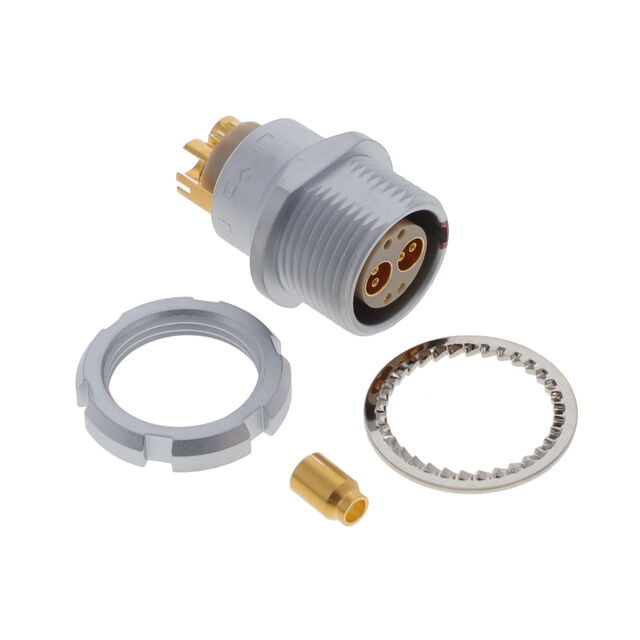

EAG.2B.542.CLL
8 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | EAG.2B.542.CLL |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Bronze |
| Current Rating | 5 A |
| Fastening Type | Push-Pull |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Insert Material | Polyetheretherketone, PEEK |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Front and Rear Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 8 |
| Operating Temperature (Max) | 250 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 542 |
| Shell Size - Insert | 542 |
| Shielding | Shielded |
| Termination | Solder |
