Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-109-087 | 3-109 Series |
|---|---|---|
| - | - | |
| Accomodates a Fuse | False | False |
| Actuator Marking | - | No Marking |
| Actuator Type | - | Flush, Button, Round |
| Approval Agency | ENEC 10, cULus | ENEC 10, cULus |
| Circuit | - | SPST-NO |
| Color - Actuator/Cap | - | Black |
| Connector Style | IEC 320-C19 | IEC 320-C19 |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Current Rating (Amps) | - | 125 mA |
| Electrical Life | - | 1000000 Cycles |
| Features | - | Tactile Feedback |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Illumination Type, Color | - | LED, Green |
| Illumination Voltage (Nominal) | - | 2.1 VDC |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mechanical Life | - | 1000000 Cycles |
| Mounting Type | Free Hanging (In-Line) | Panel Mount, Front, Free Hanging (In-Line) |
| Operating Temperature | - | -25 °C |
| Operating Temperature | - | 60 °C |
| Panel Cutout Dimensions | - | 19 mm |
| Panel Cutout Dimensions [x] | 31.8 mm | 31.8 mm |
| Panel Cutout Dimensions [y] | 25.5 mm | 25.5 mm |
| Switch Function | - | Off-Mom |
| Termination | Screw | Screw |
| Termination Style | - | Solder Lug |
| Type | - | Anti-Vandal, Illuminated |
| Voltage Rating - DC | - | 48 V |
3-109 Series
LINE FILTER
| Part | Mounting Type | Current Rating (Amps) | Features | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Termination Style | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Type | Circuit | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Mechanical Life | Electrical Life | Ingress Protection | Termination | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Material Flammability Rating | Filter Type | Connector Type | Approval Agency | Connector Style | Accomodates a Fuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 3-109-008 | ||||||||||||||||||||||||||||
SCHURTER Inc. 3-109-664 | Panel Mount, Front | 125 mA | Tactile Feedback | 48 V | 19 mm | 2.1 VDC | Solder Lug | Off-Mom | -25 °C | 60 °C | Anti-Vandal, Illuminated | SPST-NO | Button, Flush, Round | Black | No Marking | Green, LED | 1000000 Cycles | 1000000 Cycles | IP65 - Dust Tight, Water Resistant | |||||||||
SCHURTER Inc. 3-109-013 | ||||||||||||||||||||||||||||
SCHURTER Inc. 3-109-012 | ||||||||||||||||||||||||||||
SCHURTER Inc. 3-109-087 | Free Hanging (In-Line) | Screw | 25.5 mm | 31.8 mm | UL94 V-0 | Unfiltered - Commercial | Female Sockets, Plug | cULus, ENEC 10 | IEC 320-C19 | |||||||||||||||||||
SCHURTER Inc. 3-109-088 | Free Hanging (In-Line) | Screw | 25.5 mm | 31.8 mm | UL94 V-0 | Unfiltered - Commercial | Female Sockets, Plug | cULus, ENEC 10 | IEC 320-C19 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3-109 Series

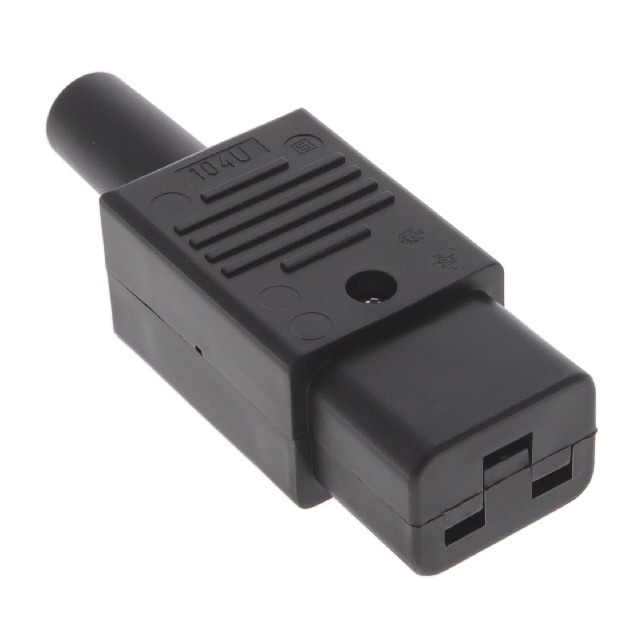

Power Entry Connector Plug, Female Sockets IEC 320-C19 Free Hanging (In-Line)
