86016-1
ActiveTE Connectivity AMP Connectors

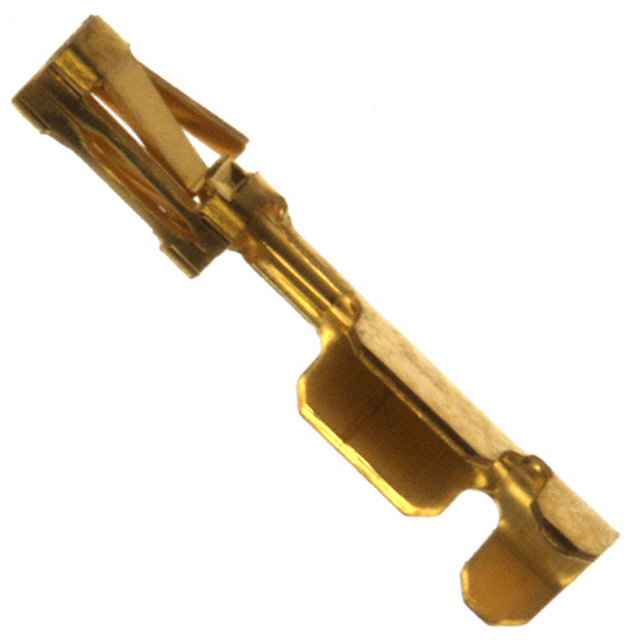

CONN SOCKET 20-24AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
86016-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 86016-1 | 86016 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 15 - 30 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
86016 Series
CONN SOCKET 20-24AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Contact Finish | Pin or Socket |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 86016-2 | 0.76 Ám | 30 Áin | 20 AWG | 24 AWG | Crimp | Gold | Socket |
TE Connectivity AMP Connectors 86016-1 | 0.76 Ám | 30 Áin | 20 AWG | 24 AWG | Crimp | Gold | Socket |
TE Connectivity AMP Connectors 86016-5 | 0.38 µm | 15 µin | 20 AWG | 24 AWG | Crimp | Gold | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.87 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.54 | |||
| 3000 | $ 0.50 | |||
Description
General part information
86016 Series
Socket Contact Gold 20-24 AWG Crimp
