HCLC-33-11.1
ActiveSignal Transformer
TOR IND LOW CORE LOSS 33UH 11.1A
HCLC-33-11.1
ActiveSignal Transformer
TOR IND LOW CORE LOSS 33UH 11.1A
Description
General part information
HCLC-33-11.1

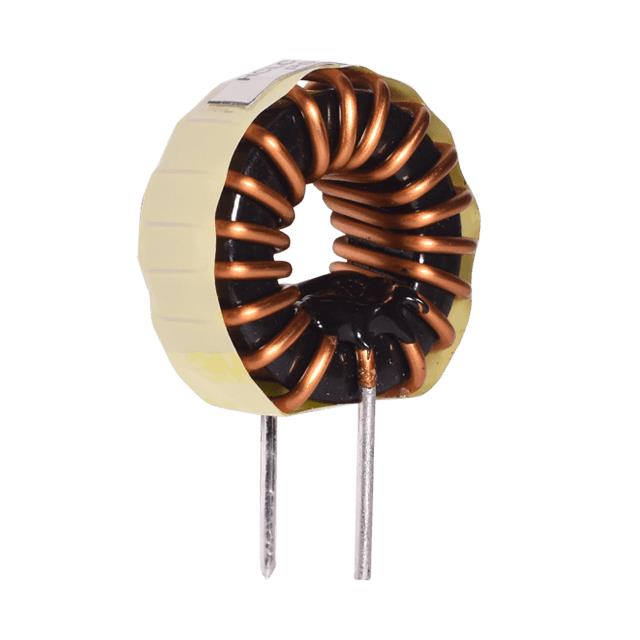

33 µH Shielded Toroidal Inductor 11.1 A 10mOhm Max Vertical, No Base, 2 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | HCLC-33-11.1 |
|---|---|
| Current Rating | 11.1 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Inductance | 33 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2 PC Pin, No Base, Vertical |
| Package Name | Vertical, No Base |
| Pad Count | 2 PC Pin |
| Shielding | Shielded |
| Size / Dimension Diameter | 1.1 in |
| Size / Dimension Width | 0.55 in |
| Tolerance | 15 % |
| Type | Toroidal |
