855LC5700K5PM8
ActiveCornell Dubilier Knowles
CAP FILM 8.5UF 700VAC CHAS MT
855LC5700K5PM8
ActiveCornell Dubilier Knowles
CAP FILM 8.5UF 700VAC CHAS MT
Description
General part information
855LC5700K5PM8

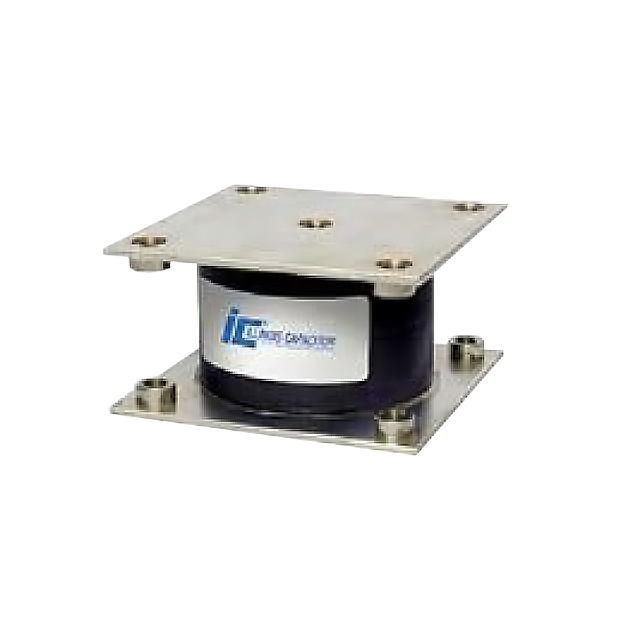

8.5 µF Film Capacitor 700V Polypropylene (PP) Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 855LC5700K5PM8 |
|---|---|
| Applications | High Pulse, DV/DT, Conduction Cooled |
| Capacitance | 8.5 µF |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.7 mOhm |
| Height - Seated (Max) | 2.146 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Width | 3.937 in |
| Termination | Threaded, Female |
| Tolerance | 10 % |
| Voltage Rating - AC | 700 V |
