AGCG.07BK100

Active

Techflex

SLEEVING 0.148" ID FBRGLASS 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AGCG.07BK100

Active

Techflex

SLEEVING 0.148" ID FBRGLASS 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 41.80

Description

General part information

AGCG Series

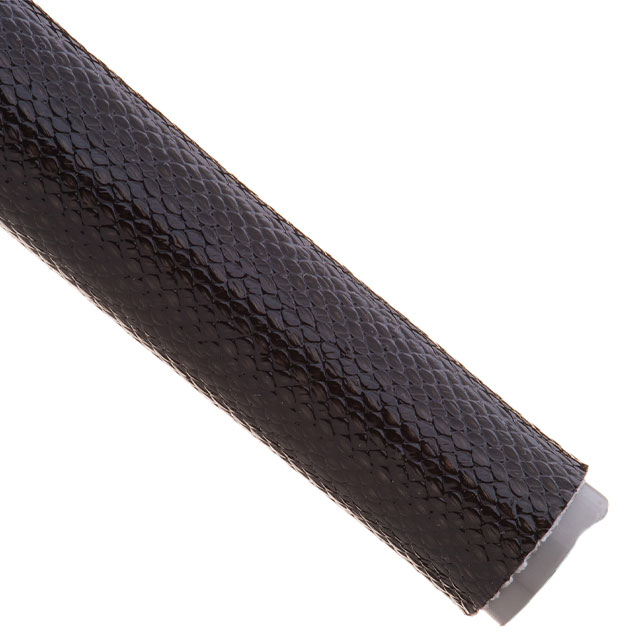

Black Fiberglass, Acrylic Coated Braided Sleeving, Insulated 0.148" (3.76mm) 100' (30.48m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AGCG.07BK100	AGCG Series

Abrasion Protection	Abrasion and Cut Resistant	Abrasion and Cut Resistant
Color	Black	Natural, Black, Yellow, Red
Diameter - Inside	-	5.28 mm
Diameter - Inside [diameter]	3.76 mm	0.208 - 8.38 mm
Diameter - Inside [diameter]	0.148 in	0.022 - 0.33 in
Diameter - Outside	-	3.28 mm
Diameter - Outside [diameter]	4.72 mm	0.129 - 9.55 mm
Diameter - Outside [diameter]	0.186 in	0.05 - 0.376 in
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Length	-	250 - 500 '
Length	-	76.2 - 152.4 m
Liquid Protection	Oil Resistant	Oil Resistant
Material	Fiberglass, Acrylic Coated	Fiberglass, Acrylic Coated
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-25 °C	-25 °C
Type	Sleeving, Insulated	Sleeving, Insulated
Type Attributes	Braided	Braided
Wall Thickness	-	0.014 - 0.017 in
Wall Thickness	-	0.35 - 0.43 mm
Wall Thickness [custom]	0.48 mm	0.48 - 0.58 mm
Wall Thickness [custom]	0.019 in	0.019 - 0.023 in

AGCG Series

SLEEVING 0.066" ID FBRGLASS 500'

Part	Color	Abrasion Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wall Thickness	Wall Thickness	Type	Type Attributes	Length [x]	Length [x]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Liquid Protection	Wall Thickness [custom]	Wall Thickness [custom]	Length	Length
Techflex AGCG.14NT500	Natural	Abrasion and Cut Resistant	0.066 in	1.68 mm	0.098 in	2.49 mm	0.016 in	0.4 mm	Sleeving, Insulated	Braided	500 '	152.4 m	Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant
Techflex AGCG.18BK250	Black	Abrasion and Cut Resistant	0.042 "	1.07 mm	0.07 "	1.78 mm	0.014 in	0.35 mm	Sleeving, Insulated	Braided	250 ft	76.2 m	Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant
Techflex AGCG.03NT250	Natural	Abrasion and Cut Resistant	0.234 in	5.94 mm	0.28 in	7.11 mm			Sleeving, Insulated	Braided	250 ft	76.2 m	Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant	0.58 mm	0.023 in
Techflex AGCG.08BK100	Black	Abrasion and Cut Resistant	0.133 in	3.38 mm	0.171 "	4.35 mm			Sleeving, Insulated	Braided			Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant	0.48 mm	0.019 in	100 ft	30.48 m
Techflex AGCG.22YL250	Yellow	Abrasion and Cut Resistant	0.027 in	0.69 mm	0.055 in	1.4 mm	0.014 in	0.35 mm	Sleeving, Insulated	Braided	250 ft	76.2 m	Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant
Techflex AGCG.22NT500	Natural	Abrasion and Cut Resistant	0.027 in	0.69 mm	0.055 in	1.4 mm	0.014 in	0.35 mm	Sleeving, Insulated	Braided	500 '	152.4 m	Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant
Techflex AGCG.09RD100	Red	Abrasion and Cut Resistant	0.118 "	3 mm	0.156 in	3.96 mm			Sleeving, Insulated	Braided			Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant	0.48 mm	0.019 in	100 ft	30.48 m
Techflex AGCG.05BK100	Black	Abrasion and Cut Resistant	0.186 in	4.72 mm	0.232 "	5.89 mm			Sleeving, Insulated	Braided			Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant	0.58 mm	0.023 in	100 ft	30.48 m
Techflex AGCG.08RD100	Red	Abrasion and Cut Resistant	0.133 in	3.38 mm	0.171 "	4.35 mm			Sleeving, Insulated	Braided			Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant	0.48 mm	0.019 in	100 ft	30.48 m
Techflex AGCG.10BK100	Black	Abrasion and Cut Resistant	0.106 in	2.69 mm	0.14 in	3.56 mm	0.017 in	0.43 mm	Sleeving, Insulated	Braided			Fiberglass, Acrylic Coated	-25 °C	155 °C	Oil Resistant			100 ft	30.48 m
