PE9237
ActivePasternack

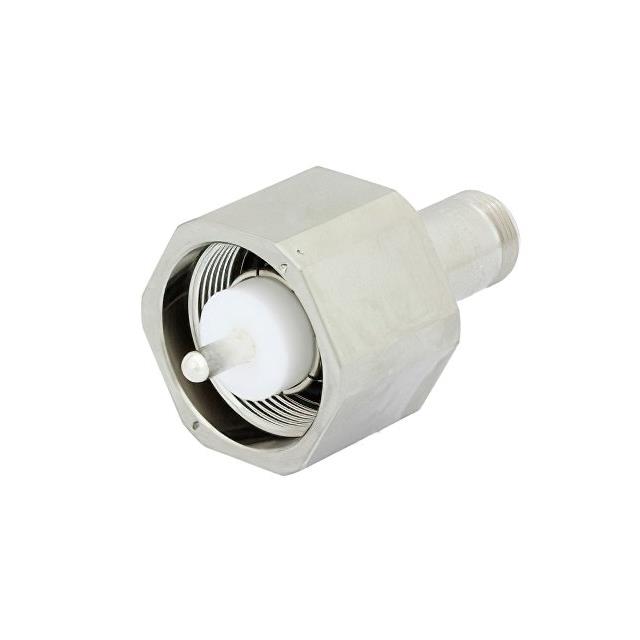

N FEMALE TO LC MALE ADAPTER
PE9237
ActivePasternack
N FEMALE TO LC MALE ADAPTER
Description
General part information
PE9237
Adapter Coaxial Connector N Jack, Female Socket To LC Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9237 |
|---|---|
| Adapter Series | N to LC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | LC Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 1 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
