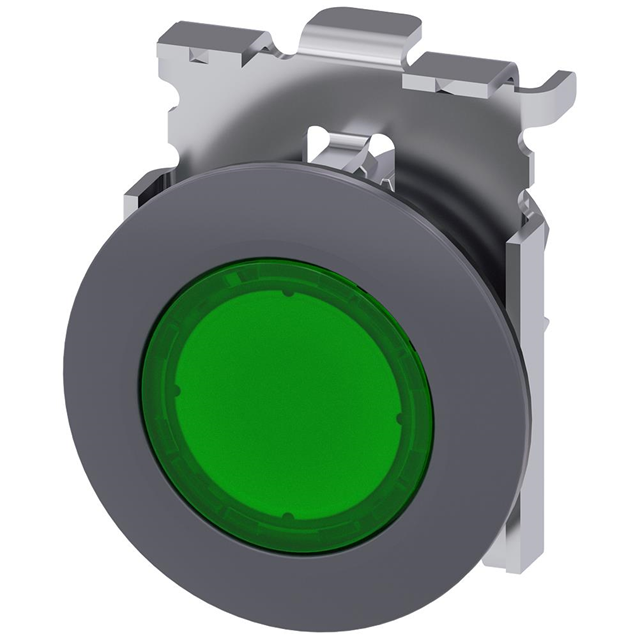

A6X30140192

Active

Siemens

INDICATOR LIGHT. GREEN

Search across all available documentation for this part.

Active

Siemens

INDICATOR LIGHT. GREEN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6X30140192	A6X30140 Series

Ingress Protection	NEMA 13, NEMA 4, NEMA 4X, NEMA 12, NEMA 3R, NEMA 1, NEMA 2, NEMA 3	NEMA 13, NEMA 4, NEMA 4X, NEMA 12, NEMA 3R, NEMA 1, NEMA 2, NEMA 3, IP67, IP69K, IP69, IP66
Lamp Color	Green	Red, Clear, Blue, Green
Lens Color	Green	Red, Colorless, Blue, Green
Lens Size [diameter]	30 mm	22 - 30 mm
Lens Transparency	Diffused	Diffused, Clear
Panel Cutout Dimensions	1.2 in	0.88 - 1.2 in
Panel Cutout Dimensions	30.5 mm	22.3 - 30.5 mm
Panel Cutout Shape	Round	Round
Type	LED	LED

INDICATOR LIGHT. RED

Part	Ingress Protection	Lens Color	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Type	Panel Cutout Shape	Lamp Color
Siemens A6X30140188	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Red	30 mm	1.2 in	30.5 mm	Diffused	LED	Round	Red
Siemens A6X30140197	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Colorless	30 mm	0.88 in	22.3 mm	Clear	LED	Round	Clear
Siemens A6X30140198	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Colorless	30 mm	1.2 in	30.5 mm	Clear	LED	Round	Clear
Siemens A6X30140196	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Blue	30 mm	1.2 in	30.5 mm	Diffused	LED	Round	Blue
Siemens A6X30140195		Blue	30 mm			Diffused	LED	Round	Blue
Siemens A6X30140187	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Red	30 mm	1.2 in	30.5 mm	Diffused	LED	Round	Red
Siemens A6X30140186		Red				Diffused	LED	Round	Red
Siemens A6X30140437	IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Blue	22 mm	0.88 in	22.3 mm	Diffused	LED	Round	Blue
Siemens A6X30140192	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Green	30 mm	1.2 in	30.5 mm	Diffused	LED	Round	Green
Siemens A6X30140205	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Colorless	30 mm	1.2 in	30.5 mm	Clear	LED	Round	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Diffused
