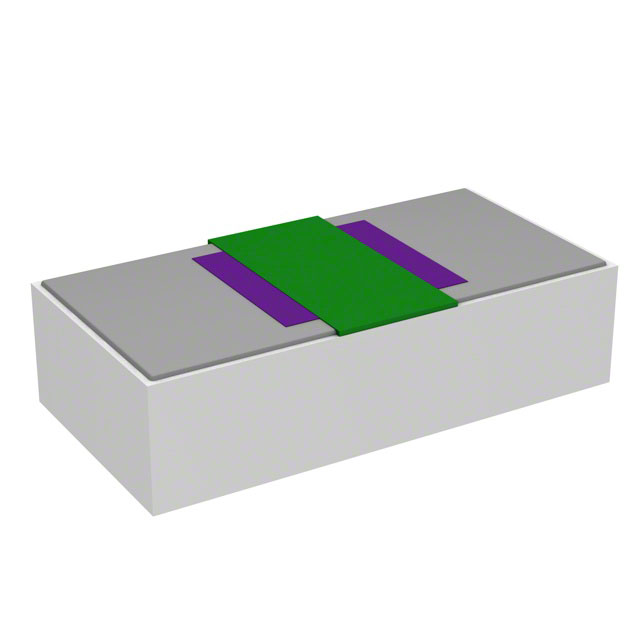

R1A100550R0J5C0

Obsolete

TTM Technologies, Inc.

RES SMD 50 OHM 5% 1/2W 1005

Search across all available documentation for this part.

Obsolete

TTM Technologies, Inc.

RES SMD 50 OHM 5% 1/2W 1005

Technical Specifications

Parameters and characteristics for this part

RES SMD 50 OHM 5% 1/2W 1005

Part	Temperature Coefficient	Tolerance	Resistance	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Number of Terminations	Composition	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Power (Watts)
TTM Technologies, Inc. R1A100550R0J5C0	300 ppm/°C	5 %	50 Ohms	High Frequency, RF	0.02 in	0.04 "	1.02 mm	0.51 mm	0.31 mm	0.012 "	0402 (1005 Metric)	2	Thick Film	1005	-55 °C	150 °C	0.5 W	0.5 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Ohms ±5% 0.5W, 1/2W Chip Resistor 0402 (1005 Metric) RF, High Frequency Thick Film

Technical documentation and resources

No documents available
