EGG.4B.670.ZZM
ActiveLEMO
CONTACT SOCKET 14-18AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGG.4B.670.ZZM
ActiveLEMO
CONTACT SOCKET 14-18AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.4B.670.ZZM | EGG.4B Series |
|---|---|---|
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | RG-174A, 316, 188A |
| Center Contact Plating | - | Gold |
| Color | - | Silver |
| Connector Style | - | Coaxial |
| Connector Type | - | Female Sockets, Insert, Receptacle, Female Sockets, Receptacle, Female Socket |
| Contact Finish | Gold | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | 59 Áin |
| Contact Finish Thickness - Mating | - | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Contact Shape | - | Circular |
| Contact Size | 1.6 mm | 0.7 - 3 mm |
| Contact Termination | Crimp | Crimp, Solder Cup |
| Contact Type | Socket | Crimp and Solder Cup, Socket |
| Current Rating (Amps) | - | 1.5 - 30 A |
| Dielectric Material | - | Polyetheretherketone (PEEK) |
| Fastening Type | - | Push-Pull |
| Features | - | Insert Only, Requires Shell |
| Housing Color | - | Silver |
| Impedance | - | 50 Ohms |
| Ingress Protection | - | IP50 |
| Insert Material | - | Polyetheretherketone (PEEK), Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | - | UL94 V-0, UL94 V-2 |
| Mating Cycles | - | 5000 |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Note | - | Note: Contacts Not Included; Insert Only, Requires Shell |
| Number of Ports | - | 1 |
| Number of Positions | - | 4 - 48 |
| Number of Positions | - | 16 |
| Number of Positions | - | 16 |
| Number of Positions | - | 2 |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 250 °C |
| Orientation | - | G |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome |
| Shell Material | - | Brass |
| Shell Size - Insert | - | 304 - 885 |
| Shield Termination | - | Crimp |
| Shielding | - | Shielded, Unshielded |
| Termination | - | Crimp |
| Type | Signal, Machined | For Female Sockets, Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 18 AWG | 18 - 26 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG | 14 - 22 AWG |
| Wire Gauge or Range - mm˛ | - | 0.14 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.34 mm˛ |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² | 0.5 - 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 1 mm² | 0.25 - 1 mm² |
EGG.4B Series
CONN FMALE INSERT 6P SOLDER CUP
| Part | Shielding | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Orientation | Material Flammability Rating | Features | Ingress Protection | Contact Finish - Mating | Insert Material | Connector Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Termination | Contact Size | Contact Type | Contact Shape | Note | Type | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Finish | Contact Termination | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Color | Shell Finish | Fastening Type | Shell Material | Primary Material | Mounting Feature | Body Material | Housing Color | Dielectric Material | Connector Style | Body Finish | Impedance | Shield Termination | Number of Ports | Mating Cycles | Center Contact Plating | Cable Group | Number of Positions | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.4B.306.ZLL | Shielded | 24 A | 59 Áin | 1.5 Ám | 6 | G | UL94 V-0 | Insert Only, Requires Shell | IP50 | Gold | Polyetheretherketone (PEEK) | Female Sockets, Insert | Bronze | -55 °C | 250 °C | 306 | ||||||||||||||||||||||||||||||||||
LEMO EGG.4B.306.ZYM | Shielded | 24 A | 59 Áin | 1.5 Ám | 6 | G | UL94 V-0 | Insert Only, Requires Shell | IP50 | Gold | Polyetheretherketone (PEEK) | Female Sockets, Insert | Bronze | -55 °C | 250 °C | 306 | Crimp | |||||||||||||||||||||||||||||||||
LEMO EGG.4B.412.YL | Unshielded | 12 | G | IP50 | -55 °C | 250 °C | 412 | 1.3 mm | Crimp and Solder Cup | Circular | Note: Contacts Not Included; Insert Only, Requires Shell | For Female Sockets | ||||||||||||||||||||||||||||||||||||||
LEMO EGG.4B.665.ZZM | Bronze | 1.3 mm | Socket | Machined, Signal | 18 AWG | 20 AWG | Gold | Crimp | 1 mm² | 0.5 mm² | ||||||||||||||||||||||||||||||||||||||||
LEMO EGG.4B.655.ZZM | Bronze | 0.7 mm | Socket | Machined, Signal | 22 AWG | 26 AWG | Gold | Crimp | 0.14 mm˛ | 0.34 mm˛ | ||||||||||||||||||||||||||||||||||||||||
LEMO EGG.4B.306.CNL | Shielded | 24 A | 59 Áin | 1.5 Ám | 6 | G | UL94 V-2 | IP50 | Gold | Polyamide (PA66), Nylon 6/6 | Receptacle, Female Sockets | Bronze | -55 °C | 250 °C | 306 | Silver | Chrome | Push-Pull | Brass | Metal | Bulkhead - Rear Side Nut | |||||||||||||||||||||||||||||
LEMO EGG.4B.307.CLL | Shielded | 20 A | 59 Áin | 1.5 Ám | 7 | G | UL94 V-0 | IP50 | Gold | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Bronze | -55 °C | 250 °C | 307 | Silver | Chrome | Push-Pull | Brass | Metal | Bulkhead - Rear Side Nut | |||||||||||||||||||||||||||||
LEMO EGG.4B.324.ZYM | Shielded | 7 A | 59 Áin | 1.5 Ám | 24 | G | UL94 V-0 | Insert Only, Requires Shell | IP50 | Gold | Polyetheretherketone (PEEK) | Female Sockets, Insert | Bronze | -55 °C | 250 °C | 324 | Crimp | |||||||||||||||||||||||||||||||||
LEMO EGG.4B.330.CLL | Shielded | 5 A | 59 Áin | 1.5 Ám | 30 | G | UL94 V-0 | IP50 | Gold | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Bronze | -55 °C | 250 °C | 330 | Silver | Chrome | Push-Pull | Brass | Metal | Bulkhead - Rear Side Nut | |||||||||||||||||||||||||||||
LEMO EGG.4B.410.YL | Unshielded | 10 | G | IP50 | -55 °C | 250 °C | 410 | 1.6 mm | Crimp and Solder Cup | Circular | Note: Contacts Not Included; Insert Only, Requires Shell | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.39 | |
| 10 | $ 6.68 | |||
| 25 | $ 6.32 | |||
| 50 | $ 6.16 | |||
| 100 | $ 5.85 | |||
| 250 | $ 5.24 | |||
| 500 | $ 4.93 | |||
| 1000 | $ 4.31 | |||
Description
General part information
EGG.4B Series

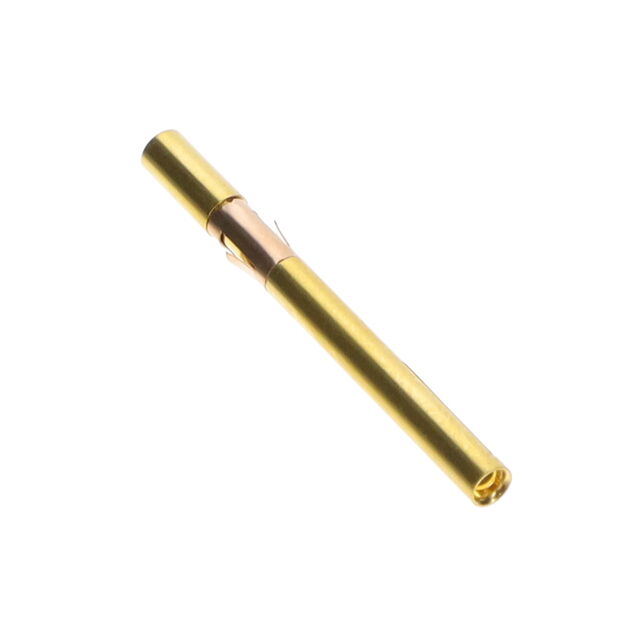

Socket Contact 14-18 AWG Size 1.6mm Crimp Gold
Documents
Technical documentation and resources
