M3AKK-2020K

Active

IDC CABLE - MSC20K/MC20F/MPK20K

Search across all available documentation for this part.

Active

IDC CABLE - MSC20K/MC20F/MPK20K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

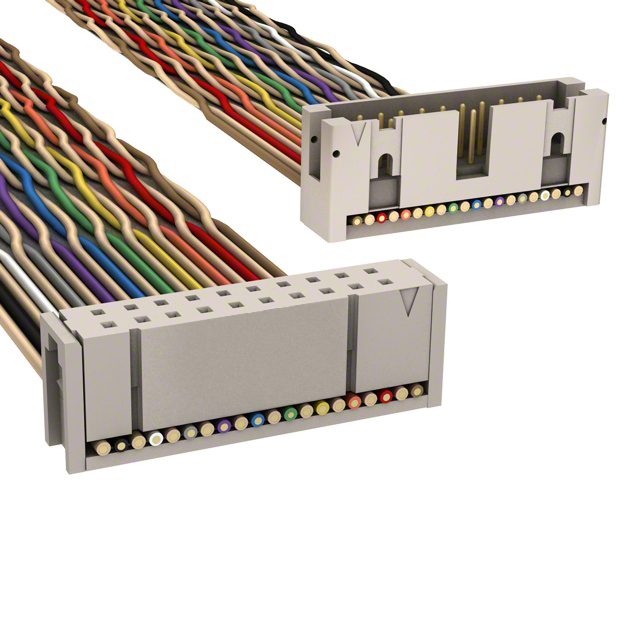

20 Position Cable Assembly Rectangular Socket to Plug 1.67' (508.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	M3AKK-2020K	M3AKK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Length	508 mm	1.52 - 508 mm
Length	1.67 ft	1.67 - 5 ft
Length	-	6 "
Length	-	0.5 '
Length	-	1.5 - 3.34 ft
Length	-	1.02 - 914.4 mm
Number of Positions	20	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

IDC CABLE - MSC10K/MC10G/MPK10K

Part	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Number of Positions	Shielding	Number of Rows	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Cable Termination	Length	Color	Length [x]	Length [x]	Number of Positions
3M M3AKK-1006J	0.05 "	1.27 mm	0.1 in	2.54 mm	10	Unshielded	2	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	Gold	Socket to Plug	IDC
3M M3AKK-2620K	0.05 "	1.27 mm	0.1 in	2.54 mm	26	Unshielded	2	508 mm			0.76 Ám	30 Áin	Gold	Socket to Plug	IDC	1.67 ft	Multiple, Twisted Pair (Flat)
3M M3AKK-5036R	0.05 "	1.27 mm	0.1 in	2.54 mm	50	Unshielded	2				0.76 Ám	30 Áin	Gold	Socket to Plug	IDC		Multiple, Ribbon	3 ft	914.4 mm
3M M3AKK-5020K	0.05 "	1.27 mm	0.1 in	2.54 mm	50	Unshielded	2	508 mm			0.76 Ám	30 Áin	Gold	Socket to Plug	IDC	1.67 ft	Multiple, Twisted Pair (Flat)
3M M3AKK-3440K	0.05 "	1.27 mm	0.1 in	2.54 mm	34	Unshielded	2				0.76 Ám	30 Áin	Gold	Socket to Plug	IDC		Multiple, Twisted Pair (Flat)	3.34 ft	1.02 m
3M M3AKK-1636R	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2				0.76 Ám	30 Áin	Gold	Socket to Plug	IDC		Multiple, Ribbon	3 ft	914.4 mm	16
3M M3AKK-6060K	0.05 "	1.27 mm	0.1 in	2.54 mm	60	Unshielded	2	1.52 m			0.76 Ám	30 Áin	Gold	Socket to Plug	IDC	5 '	Multiple, Twisted Pair (Flat)
3M M3AKK-6036R	0.05 "	1.27 mm	0.1 in	2.54 mm	60	Unshielded	2				0.76 Ám	30 Áin	Gold	Socket to Plug	IDC		Multiple, Ribbon	3 ft	914.4 mm
3M M3AKK-1636J	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2				0.76 Ám	30 Áin	Gold	Socket to Plug	IDC			3 ft	914.4 mm	16
3M M3AKK-5006R	0.05 "	1.27 mm	0.1 in	2.54 mm	50	Unshielded	2	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	Gold	Socket to Plug	IDC		Multiple, Ribbon
