638-W26-621-012
ActiveEDAC Inc.
638W (WATERPROOF) SERIES VERTICA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
638-W26-621-012
ActiveEDAC Inc.
638W (WATERPROOF) SERIES VERTICA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 638-W26-621-012 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
638-W26 Series
| Part | Ingress Protection | Contact Finish | Connector Type | Connector Style | Shell Material, Finish | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Color | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Number of Rows | Termination | Contact Material | Shell Size, Connector Layout | Shell Size, Connector Layout | Dielectric Material | Contact Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | D-Sub High Density | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | -25 °C | 85 °C | Flash | Black | 26 | UL94 V-0 | 3 A | 3 | Solder | Copper Alloy | 2 | (DA A) High Density | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Through Hole | ||
EDAC Inc. | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | D-Sub High Density | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | -25 °C | 85 °C | Flash | Black | 26 | UL94 V-0 | 3 A | 3 | Copper Alloy | 2 | (DA A) High Density | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Free Hanging (In-Line) | |||
EDAC Inc. | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | D-Sub High Density | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | -25 °C | 85 °C | Black | 26 | UL94 V-0 | 3 A | 3 | Solder | Copper Alloy | 2 | (DA A) High Density | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Through Hole | 15 µin | 0.38 µm | |
EDAC Inc. | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | D-Sub High Density | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | -25 °C | 85 °C | Black | 26 | UL94 V-0 | 3 A | 3 | Copper Alloy | 2 | (DA A) High Density | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Free Hanging (In-Line) | 15 µin | 0.38 µm | ||
EDAC Inc. | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | D-Sub High Density | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | -25 °C | 85 °C | Black | 26 | UL94 V-0 | 3 A | 3 | Solder | Copper Alloy | 2 | (DA A) High Density | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Through Hole | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 15.88 | |
Description
General part information
638-W26 Series

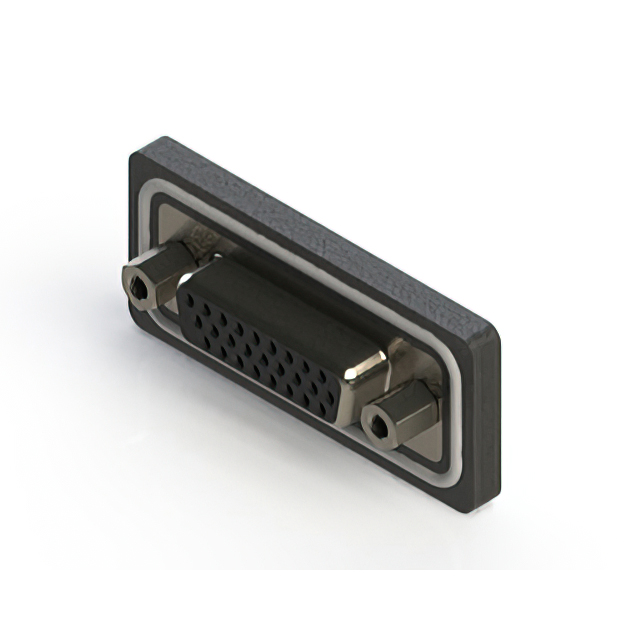

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
