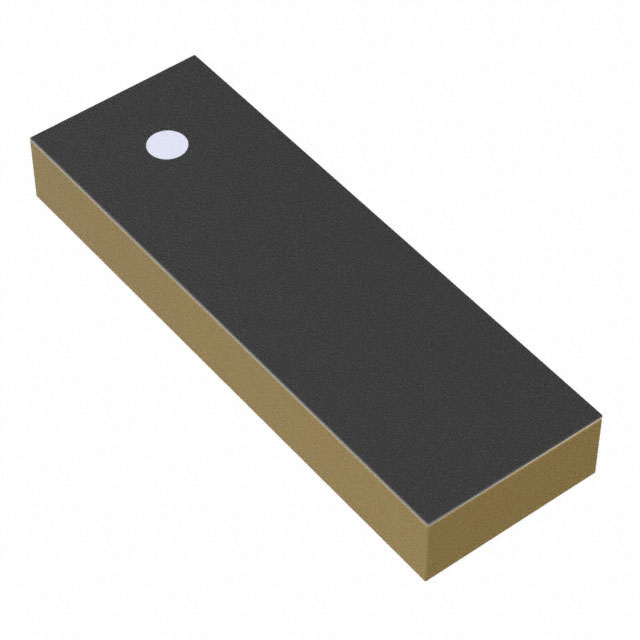

ANT1204F005R0915A

Active

Pulse Electronics

RF ANT 915MHZ CHIP SOLDER SMD

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 915MHZ CHIP SOLDER SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT1204F005R0915A	ANT1204 Series

Antenna Type	Chip	Chip
Applications	General Purpose	ISM, General Purpose, GPS, GLONASS, Beidou, GNSS
Frequency (Center/Band)	915 MHz	1.58 - 915 MHz
Frequency (Center/Band)	-	900 MHz
Frequency (Center/Band)	-	1.8 GHz
Frequency Group	-	UHF
Frequency Group [Max]	1 GHz	1 - 2 GHz
Frequency Group [Min]	300 MHz	1 - 300 MHz
Frequency Range	-	1.61 - 887 MHz
Frequency Range	-	419 - 1550 MHz
Gain	1.59 dBi	-1.6 - 2.32 dBi
Height (Max) [Max]	0.063 in	0.043 - 0.063 in
Height (Max) [Max]	1.6 mm	1.1 - 1.6 mm
Mounting Type	Surface Mount	Surface Mount, Connector Mount
Number of Bands	1	1 - 2
Power - Max [Max]	1 W	1 - 2 W
Return Loss	10 dB	-10 - 10 dB
RF Family/Standard	-	General ISM, Navigation
Termination	Solder	Solder
VSWR	-	1.92 - 3

ANTENNA CHIP 315M HELIX TYPE20

Part	Frequency (Center/Band)	RF Family/Standard	Antenna Type	Number of Bands	Mounting Type	Termination	Applications	Power - Max [Max]	Frequency Group [Max]	Frequency Group [Min]	Height (Max) [Max]	Height (Max) [Max]	Return Loss	Gain	Frequency (Center/Band) [custom]	Frequency (Center/Band) [custom]	VSWR	Frequency Range [Max]	Frequency Range [Min]	Frequency Group
Pulse Electronics ANT1204LL20R0315A	315 MHz	General ISM	Chip	1	Surface Mount	Solder	ISM	1 W	1 GHz	300 MHz	1.5 mm	0.059 in
Pulse Electronics ANT1204F007R0870A	870 MHz		Chip	1	Surface Mount	Solder	General Purpose	1 W	1 GHz	300 MHz	1.6 mm	0.063 in	10 dB	1.67 dBi
Pulse Electronics ANT1204LL00R0918A			Chip	2	Surface Mount	Solder		2 W			1.2 mm	0.047 in	-10 dB	-1.6 dBi, 1.08 dBi	900 MHz	1.8 GHz	3
Pulse Electronics ANT1204LL08R0870A	870 MHz		Chip	1	Surface Mount	Solder		1 W	1 GHz	300 MHz	1.6 mm	0.063 in	-10 dB	1.51 dBi			1.92	887 MHz	853 MHz
Pulse Electronics ANT1204F005R0915A	915 MHz		Chip	1	Surface Mount	Solder	General Purpose	1 W	1 GHz	300 MHz	1.6 mm	0.063 in	10 dB	1.59 dBi
Pulse Electronics ANT1204LL04RGNSSA	1.58 GHz	Navigation	Chip	1	Connector Mount	Solder	Beidou, GLONASS, GNSS, GPS	1 W	2 GHz	1 GHz	1.1 mm	0.043 in		2.32 dBi				1.61 GHz	1550 MHz	UHF
Pulse Electronics ANT1204F002R0433A	433 MHz		Chip	1	Surface Mount	Solder		1 W	1 GHz	300 MHz	1.6 mm	0.063 in	-6.5 dB	0.79 dBi				447 MHz	419 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA General Purpose Chip Solder Surface Mount
