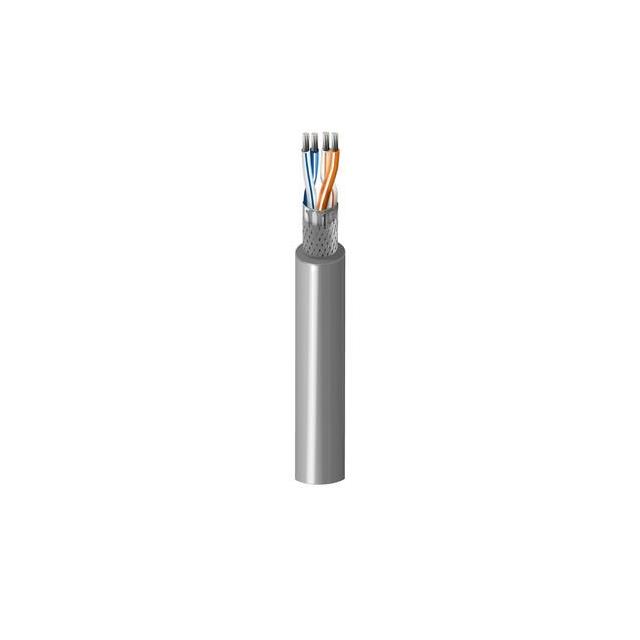

9842 0605000

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9842 0605000

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.34 in
Jacket (Insulation) Diameter [diameter]	8.64 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Material	Shield Coverage	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Wire Gauge	Shield Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Insulation	Length [x]	Length [x]	Ratings	Voltage
Belden Inc. 9842 060100	Poly-Vinyl Chloride (PVC)	90 % 100 %	Drain Wire	0.34 in	8.64 mm	Aluminum Copper Tinned	24 AWG	Braid Foil	Copper Tinned	32 AWG	7	Chrome	Multi-Pair	-30 ░C	80 C	Computer	0.889 mm	0.035 in	4	Polyethylene (PE)	30.5 m	100 ft
Belden Inc. 9842 0605000	Poly-Vinyl Chloride (PVC)	90 % 100 %	Drain Wire	0.34 in	8.64 mm	Aluminum Copper Tinned	24 AWG	Braid Foil	Copper Tinned	32 AWG	7	Chrome	Multi-Pair	-30 ░C	80 C	Computer	0.889 mm	0.035 in	4	Polyethylene (PE)			UL Style 2919	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.37

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 5000' (1524.0m)
