Technical Specifications
Parameters and characteristics for this part
| Specification | 806-040-ME10E18-1SCD |
|---|---|
| Applications | Aerospace |
| Backshell Material, Plating | Aluminum |
| Cable Opening | 0.913 in |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Threaded |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 1 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | D |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 10 mm |
| Shell Size - Insert Width | 1 mm |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 3999.99 | 30d+ |
CAD
3D models and CAD resources for this part
Description
General part information

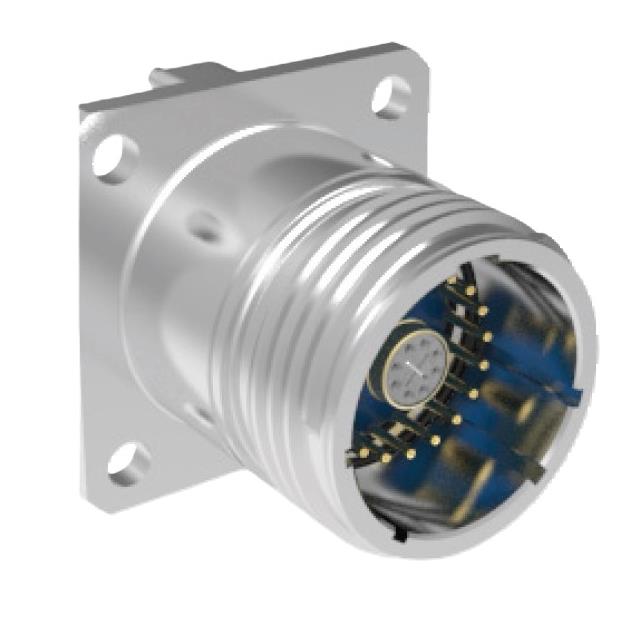

806-040-ME10E18-1SCD
1 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
