Technical Specifications
Parameters and characteristics for this part
| Specification | RG213-SMRP-TF(QTY:30M) |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 213, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 3 GHz |
| Length | 98.425 ft |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 239.71 | <6d |
| 10 | $ 220.01 | |||
| 25 | $ 201.16 | |||
CAD
3D models and CAD resources for this part
Description
General part information

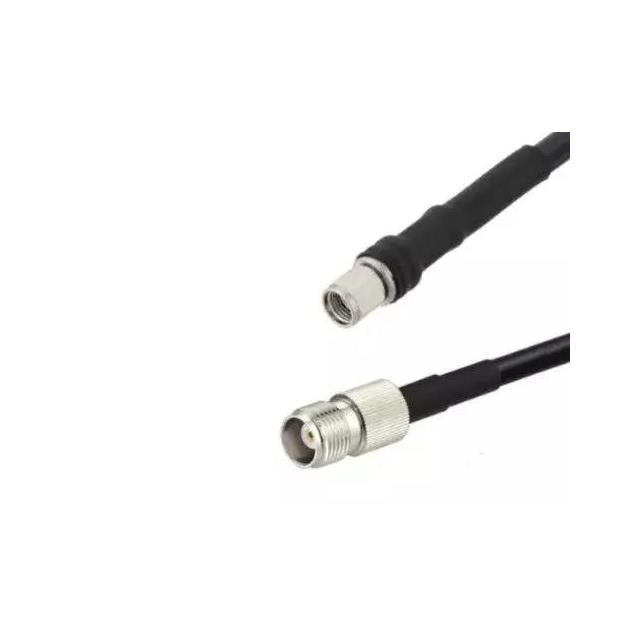

RG213-SMRP-TF(QTY:30M)
Cable Assembly Coaxial
