Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/24GE6PN |
|---|---|
| Applications | Military, Aerospace, Marine, Aviation |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating | 23 A |
| Fastening Type | Threaded |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 6 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 17 mm |
| Shell Size - Insert Width | 6 mm |
| Shell Size (MIL) | E |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 850 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 704.12 | 30d+ |
| 10 | $ 557.11 | |||
CAD
3D models and CAD resources for this part
Description
General part information

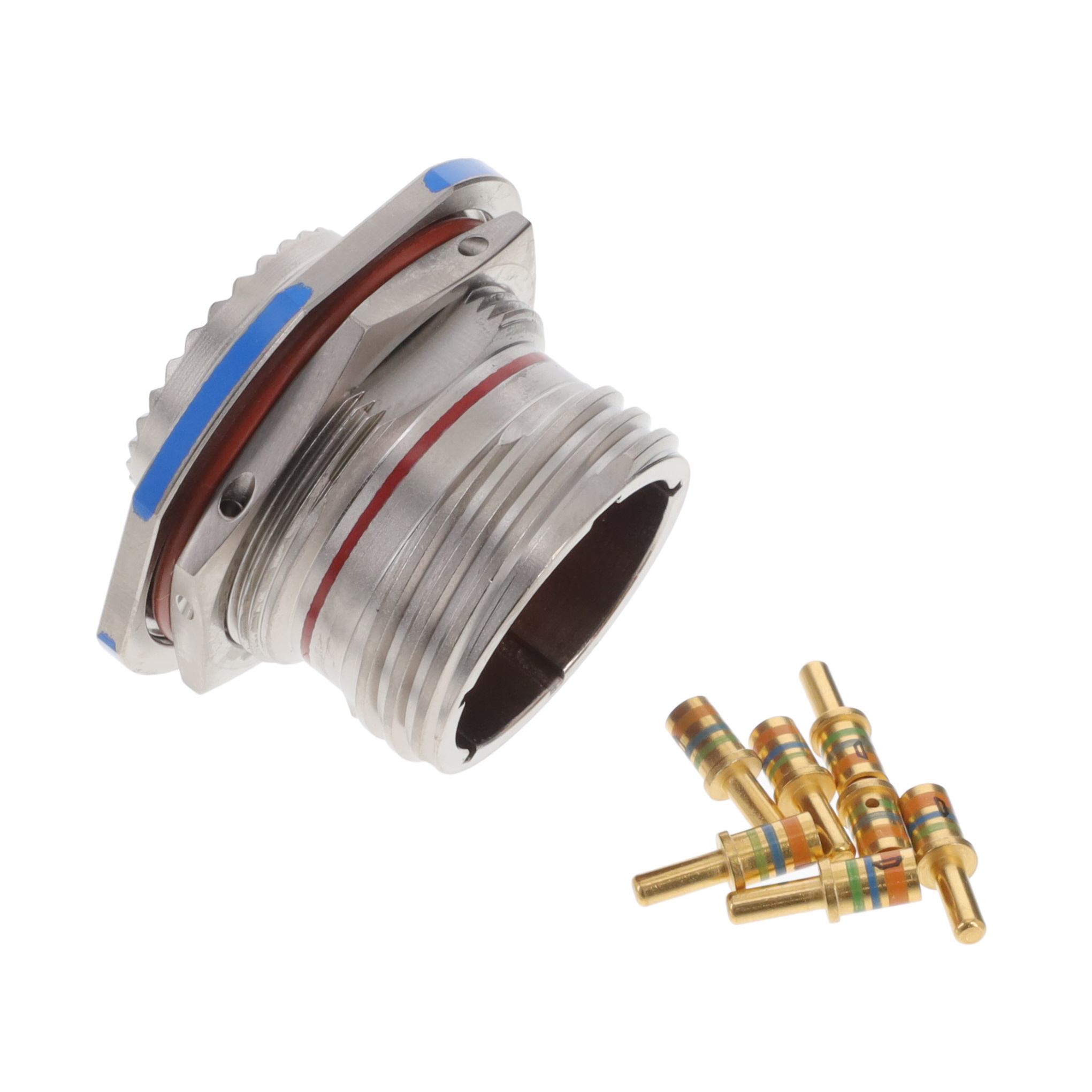

D38999/24GE6PN
6 Position Circular Connector Receptacle, Male Pins Crimp
