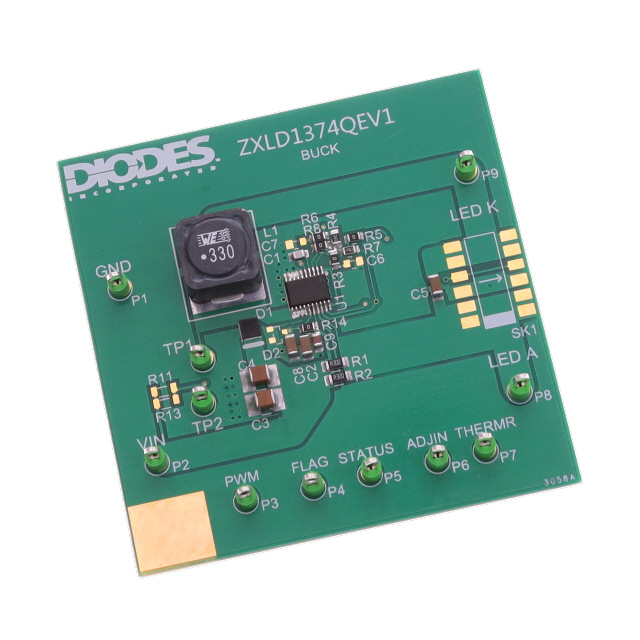

ZXLD1374QEV1

Active

Diodes Inc

EVAL BOARD FOR ZXLD1374Q

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR ZXLD1374Q

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Type	Voltage - Supply (Min) [Min]	Internal Switch(s)	Grade	Frequency	Dimming	Number of Outputs	Current - Output / Channel	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Qualification	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Utilized IC / Part	Outputs and Type	Features
Diodes Inc ZXLD1374EST20TC	Surface Mount	DC DC Regulator	8 V		Automotive	1 MHz	PWM	1	1.5 A	Step-Down (Buck) Step-Up (Boost)	-40 °C	125 ¯C	20-TSSOP-EP	AEC-Q100	0.173 in 4.4 mm	Exposed Pad	20-TSSOP
Diodes Inc ZXLD1374QEV1									1.5 A									8 V	48 V	Board(s)	ZXLD1374Q	1 Non-Isolated Output	Dimmable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 66.92

General part information

ZXLD1374Q - 1 Non-Isolated Output Dimmable LED Driver Evaluation Board
