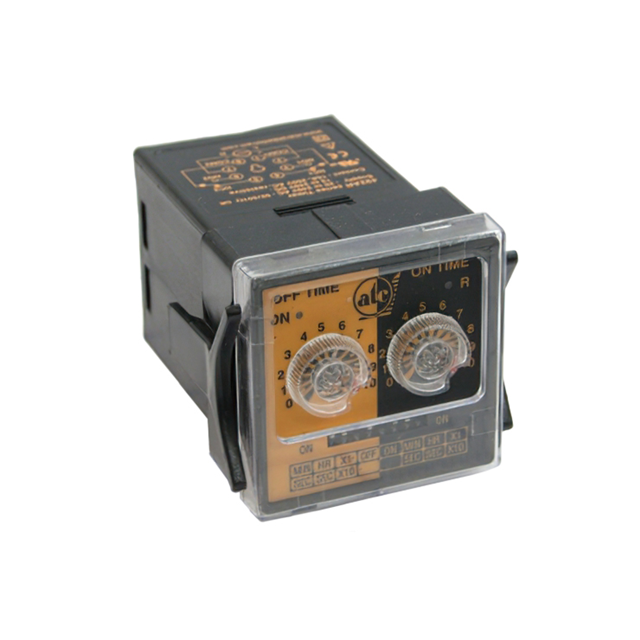

422AR-100-S-0-X

Active

ATC

RELAY TIME DELAY 10HR 10A 250V

Search across all available documentation for this part.

Active

ATC

RELAY TIME DELAY 10HR 10A 250V

Technical Specifications

Parameters and characteristics for this part

RELAY TIME DELAY 10HR 10A 250V

Part	Relay Type	Timing Adjustment Method	Termination Style	Delay Time [Max]	Delay Time [Min]	Contact Rating @ Voltage	Circuit	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Timing Initiate Method
ATC 422AR-100-S-0-X	Mechanical Relay	Hand Dial	Plug In, 8 Pin (Octal)	10 Hrs	1 Sec	10 A, 250 VAC	DPDT (2 Form C)	Socketable	240 VAC, 240 VDC	12 V, 20 VAC	Repeat Cycle	Input Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Repeat Cycle Time Delay Relay DPDT (2 Form C) 1 Sec ~ 10 Hrs Delay 10A @ 250VAC Socketable

Technical documentation and resources

No documents available
