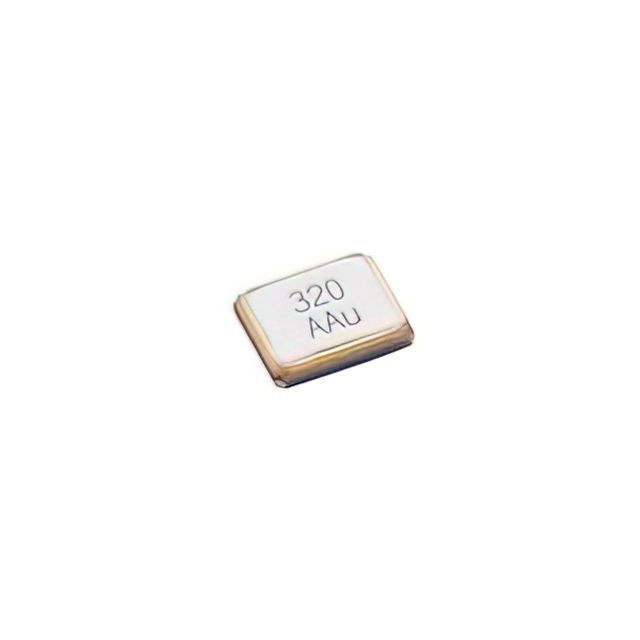

C2E-25.000-10-3030-X-M
ActiveAker Technology Corp
CRYSTAL 25.0000MHZ 10PF SMD
C2E-25.000-10-3030-X-M
ActiveAker Technology Corp
CRYSTAL 25.0000MHZ 10PF SMD
Description
General part information
C2E-25.000-10-3030-X-M
25 MHz ±30ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | C2E-25.000-10-3030-X-M |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohm |
| Frequency | 25 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.026 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.5 mm |
| Package Name | 4-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | MHz Crystal |
