CRGS0603J1M8
ActiveTE Connectivity AMP Connectors

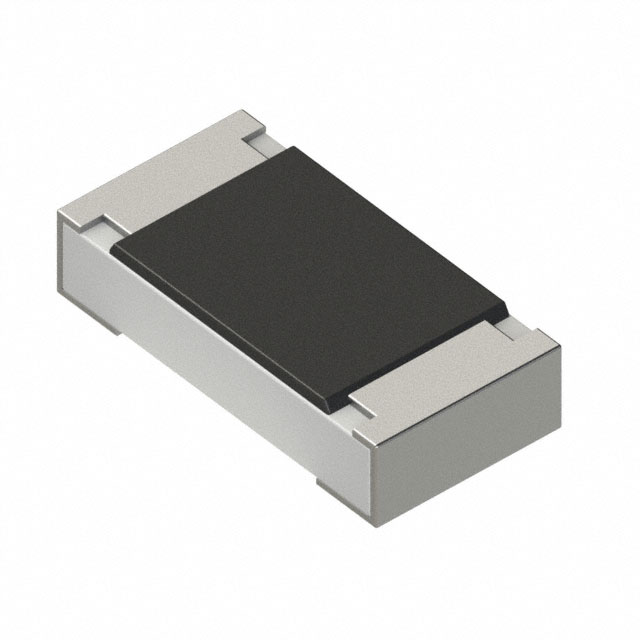

RES SMD 1.8M OHM 5% 1/4W 0603
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CRGS0603J1M8
ActiveTE Connectivity AMP Connectors
RES SMD 1.8M OHM 5% 1/4W 0603
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CRGS0603J1M8 | CRGS0 Series |
|---|---|---|
| Composition | Thick Film | Thick Film |
| Features | Pulse Withstanding | Pulse Withstanding |
| Height - Seated (Max) | - | 0.026 in |
| Height - Seated (Max) | - | 0.65 mm |
| Height - Seated (Max) [Max] [z] | 0.022 in | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm | 0.55 mm |
| Number of Terminations | 2 | 2 |
| Operating Temperature [Max] | 155 °C | 155 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 0603 (1608 Metric) | 0805, 0603 (1608 Metric) |
| Power (Watts) | 0.25 W | 0.25 - 0.5 W |
| Power (Watts) | 250 mW | 0.5 - 250 W |
| Resistance | 1.8 MOhms | 1.8 - 560 Ohms |
| Size / Dimension [x] | 0.063 in | 0.063 - 0.079 in |
| Size / Dimension [x] | 1.6 mm | 1.6 - 2 mm |
| Size / Dimension [y] | 0.8 mm | 0.8 - 1.25 mm |
| Size / Dimension [y] | 0.031 in | 0.031 - 0.049 in |
| Supplier Device Package | - | 0805 |
| Temperature Coefficient | 100 ppm/°C | 100 ppm/°C |
| Tolerance | 5 % | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20000 | $ 0.04 | |
CRGS0 Series
RES SMD 560 OHM 5% 1/2W 0805
| Part | Temperature Coefficient | Resistance | Power (Watts) | Power (Watts) | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Composition | Tolerance | Features | Number of Terminations | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CRGS0805J560R | 100 ppm/°C | 560 Ohms | 0.5 W | 0.5 W | 0805 | 0.026 in | 0.65 mm | 0805 | 155 °C | -55 °C | 2 mm | 0.079 in | 0.049 in | 1.25 mm | Thick Film | 5 % | Pulse Withstanding | 2 | ||
TE Connectivity AMP Connectors CRGS0603J1M8 | 100 ppm/°C | 1.8 MOhms | 250 mW | 0.25 W | 0603 (1608 Metric) | 155 °C | -55 °C | 1.6 mm | 0.063 in | 0.031 in | 0.8 mm | Thick Film | 5 % | Pulse Withstanding | 2 | 0.022 in | 0.55 mm |
Description
General part information
CRGS0 Series
1.8 MOhms ±5% 0.25W, 1/4W Chip Resistor 0603 (1608 Metric) Pulse Withstanding Thick Film
