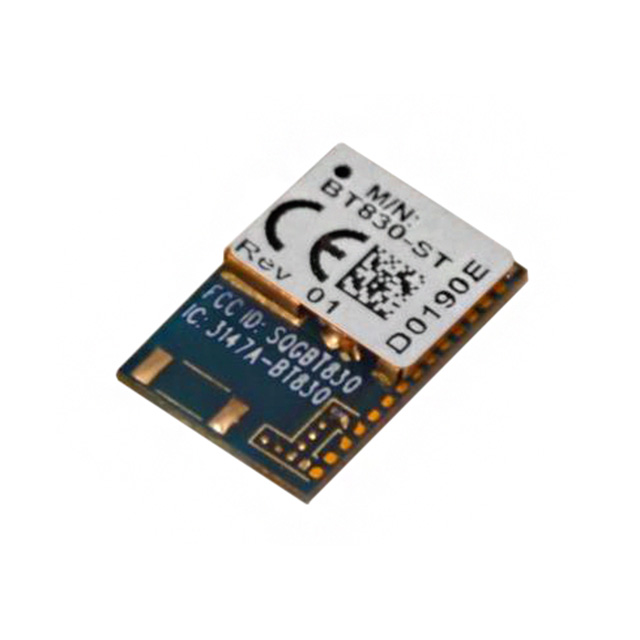

BT830-ST

Active

Ezurio LLC

RF TXRX MOD BT CAST SMD

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD BT CAST SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BT830-ST	BT830 Series

Antenna Type	Antenna Not Included, Castellation	Antenna Not Included, Castellation, Integrated, Chip
Current - Receiving	7.1 mA	7.1 mA
Current - Transmitting	7.1 mA	7.1 mA
Data Rate	3 Mbps	3 Mbps
Frequency	2.4 GHz	2.4 GHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Package / Case	Module	Module
Power - Output	7 dBm	7 dBm
Protocol	Bluetooth v4.0	Bluetooth v4.0
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-89 dBm	-89 dBm
Serial Interfaces	UART, I2S, SPI	UART, I2S, SPI, I2C
Utilized IC / Part	CSR8811	CSR8811
Voltage - Supply	3.3 V	3.3 V

RF TXRX MOD BT CAST SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Protocol	Package / Case	RF Family/Standard	Data Rate	Power - Output	Current - Receiving	Sensitivity	Antenna Type	Current - Transmitting	Voltage - Supply	Utilized IC / Part	Frequency	Serial Interfaces	Mounting Type
Ezurio LLC BT830-ST-01-T/R	-30 ░C	85 °C	Bluetooth v4.0	Module	Bluetooth	3 Mbps	7 dBm	7.1 mA	-89 dBm	Antenna Not Included, Castellation	7.1 mA	3.3 V	CSR8811	2.4 GHz	I2S, SPI, UART	Surface Mount
Ezurio LLC BT830-ST	-30 ░C	85 °C	Bluetooth v4.0	Module	Bluetooth	3 Mbps	7 dBm	7.1 mA	-89 dBm	Antenna Not Included, Castellation	7.1 mA	3.3 V	CSR8811	2.4 GHz	I2S, SPI, UART	Surface Mount
Ezurio LLC BT830-SA-01	-30 ░C	85 °C	Bluetooth v4.0	Module	Bluetooth	3 Mbps	7 dBm	7.1 mA	-89 dBm	Integrated, Chip	7.1 mA	3.3 V	CSR8811	2.4 GHz	I2S, SPI, UART	Surface Mount
Ezurio LLC BT830-SA-01-T/R	-30 ░C	85 °C	Bluetooth v4.0	Module	Bluetooth	3 Mbps	7 dBm	7.1 mA	-89 dBm	Integrated, Chip	7.1 mA	3.3 V	CSR8811	2.4 GHz	I2C, SPI, UART	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz Antenna Not Included, Castellation Surface Mount
