TMR3002

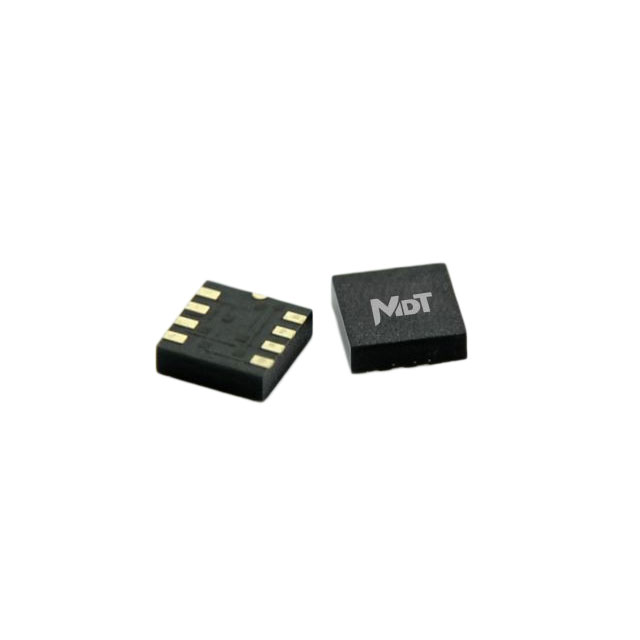

Magnetoresistive Sensor Angle External Magnet, Not Included SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR3002 |
|---|---|
| Actuator Type | Not Included, External Magnet |
| For Measuring | Angle |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Wheatstone Bridge |
| Output Signal | Cosine, Sine |
| Package / Case | 8-VFLGA |
| Package Length | 3 mm |
| Package Name | 8-LGA |
| Package Width | 3 mm |
| Resistance | 280 kOhm |
| Rotation Angle - Electrical, Mechanical (Maximum) | 360 ° |
| Rotation Angle - Electrical, Mechanical (Minimum) | 0 ° |
| Technology | Magnetoresistive |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 7 V |
