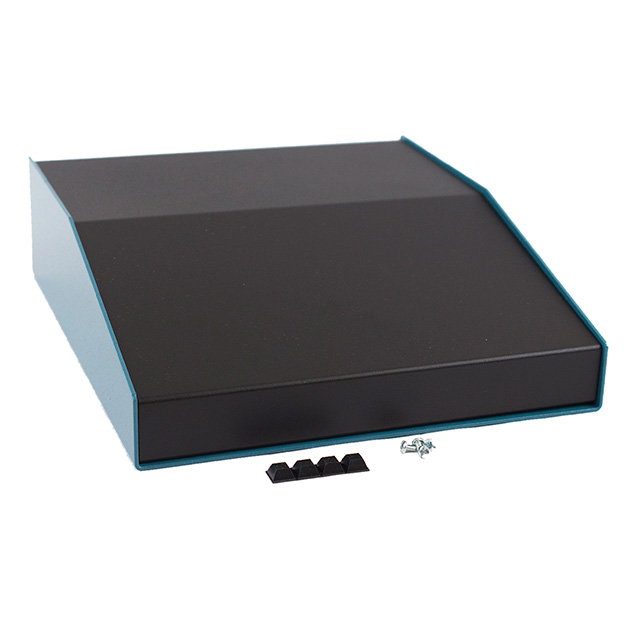

1456KL3BKBU
ActiveHammond Manufacturing
CONSOLE ALUM 11.61"L X 10.18"W
Deep-Dive with AI
Search across all available documentation for this part.
Documents1456 Series
1456KL3BKBU
ActiveHammond Manufacturing
CONSOLE ALUM 11.61"L X 10.18"W
Deep-Dive with AI
Documents1456 Series
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1456KL3BKBU | 1456 Series |
|---|---|---|
| Area (L x W) | 118 in˛ | 38.4 - 235 in² |
| Area (L x W) | 761 cm˛ | 248 - 1516 cm² |
| Area (L x W) | - | 76.2 - 149 in² |
| Area (L x W) | - | 961 cm² |
| Area (L x W) | - | 492 cm² |
| Area (L x W) | - | 155 - 948 cm² |
| Area (L x W) | - | 24 - 147 in² |
| Area (L x W) | - | 787 cm² |
| Area (L x W) | - | 122 in² |
| Color | Black, Blue | Black, Blue, White |
| Container Type | Console | Console |
| Design | Slanted Top | Slanted Top |
| Features | Slope | Slope, Walnut Side Panels |
| Features | 15 ° | 10 - 30 ° |
| Height [z] | 81.53 mm | 56.13 - 106.93 mm |
| Height [z] | 3.21 in | 2.21 - 101.6 in |
| Material | Metal, Aluminum | Metal, Aluminum, Wood |
| Size / Dimension | - | 10.18 - 514.6 mm |
| Size / Dimension | - | 258.57 - 266.19 mm |
| Size / Dimension | - | 106.17 mm |
| Size / Dimension [x] | 11.61 " | 5.77 - 20.26 in |
| Size / Dimension [x] | 294.89 mm | 146.56 - 514.6 mm |
| Size / Dimension [y] | 258.57 mm | 146.05 - 294.89 mm |
| Size / Dimension [y] | 10.18 " | 4.18 - 11.61 in |
| Thickness | 2.06 mm | 2.06 mm |
| Thickness | 0.081 in | 0.081 in |
1456 Series
CONSOLE ALUM 14.18"L X 10.48"W
| Part | Design | Height [z] | Height [z] | Area (L x W) [x] | Area (L x W) [y] | Material | Features | Features | Container Type | Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Thickness | Thickness | Area (L x W) [x] | Area (L x W) [custom] | Area (L x W) [custom] | Area (L x W) | Area (L x W) | Area (L x W) [custom] | Area (L x W) [custom] | Size / Dimension | Size / Dimension | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing 1456PK4BKBU | Slanted Top | 106.93 mm | 4.21 in | 149 in² | 961 cm² | Aluminum, Metal | Slope | 30 ° | Console | Black, Blue | 266.19 mm | 14.18 in | 10.48 in | 360.17 mm | 2.06 mm | 0.081 in | ||||||||||
Hammond Manufacturing 1456KG4BKBU | Slanted Top | 106.93 mm | 4.21 in | 76.2 in² | Aluminum, Metal | Slope | 30 ° | Console | Black, Blue | 189.99 mm | 10.18 in | 7.48 in | 258.57 mm | 2.06 mm | 0.081 in | 492 cm² | ||||||||||
Hammond Manufacturing 1456RH3BKBU | Slanted Top | 81.53 mm | 3.21 in | Aluminum, Metal | Slope | 15 ° | Console | Black, Blue | 218.69 mm | 17.12 " | 8.61 " | 434.85 mm | 2.06 mm | 0.081 in | 948 cm² | 147 in² | ||||||||||
Hammond Manufacturing 1456RK4WHBU | Slanted Top | 106.93 mm | 4.21 in | Aluminum, Metal | Slope | 30 ° | Console | Blue, White | 266.19 mm | 17.12 " | 10.48 in | 434.85 mm | 2.06 mm | 0.081 in | 179 in² | 1155 cm² | ||||||||||
Hammond Manufacturing 1456RL3WHBU | Slanted Top | 81.53 mm | 3.21 in | Aluminum, Metal | Slope | 15 ° | Console | Blue, White | 294.89 mm | 17.12 " | 11.61 in | 434.85 mm | 2.06 mm | 0.081 in | 199 in˛ | 1284 cm˛ | ||||||||||
Hammond Manufacturing 1456KL3BKBU | Slanted Top | 81.53 mm | 3.21 in | Aluminum, Metal | Slope | 15 ° | Console | Black, Blue | 258.57 mm | 11.61 " | 10.18 " | 294.89 mm | 2.06 mm | 0.081 in | 118 in˛ | 761 cm˛ | ||||||||||
Hammond Manufacturing 1456PH3BKBU | Slanted Top | 81.53 mm | 3.21 in | Aluminum, Metal | Slope | 15 ° | Console | Black, Blue | 218.69 mm | 14.18 in | 8.61 " | 360.17 mm | 2.06 mm | 0.081 in | 787 cm² | 122 in² | ||||||||||
Hammond Manufacturing 1456PH3WHBU | Slanted Top | 81.53 mm | 3.21 in | Aluminum, Metal | Slope | 15 ° | Console | Blue, White | 218.69 mm | 14.18 in | 8.61 " | 360.17 mm | 2.06 mm | 0.081 in | 787 cm² | 122 in² | ||||||||||
Hammond Manufacturing 1456FH3WHBU | Slanted Top | 81.53 mm | 3.21 in | Aluminum, Metal | Slope | 15 ° | Console | Blue, White | 8.61 in | 6.68 " | 2.06 mm | 0.081 in | 57.5 in² | 371 cm² | 169.67 mm, 218.69 mm | |||||||||||
Hammond Manufacturing 1456RL3BKBU | Slanted Top | 81.53 mm | 3.21 in | Aluminum, Metal | Slope | 15 ° | Console | Black, Blue | 294.89 mm | 17.12 " | 11.61 in | 434.85 mm | 2.06 mm | 0.081 in | 199 in˛ | 1284 cm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.35 | |
| 10 | $ 40.55 | |||
| 100 | $ 38.53 | |||
Description
General part information
1456 Series
Console Metal, Aluminum Black, Blue Slanted Top 11.610" L x 10.180" W (294.89mm x 258.57mm) X 3.210" (81.53mm)
