630-W15-340-015

Active

EDAC Inc.

630W (WATERPROOF) SERIES RIGHT A

Search across all available documentation for this part.

Active

EDAC Inc.

630W (WATERPROOF) SERIES RIGHT A

Technical Specifications

Parameters and characteristics for this part

Specification	630-W15-340-015

Backset Spacing	0.406 in
Backset Spacing	10.3 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

Part	Features	Contact Material	Dielectric Material	Backset Spacing	Backset Spacing	Current Rating (Amps)	Ingress Protection	Color	Mounting Type	Shell Material, Finish	Number of Rows	Termination	Contact Finish Thickness	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Type	Connector Type	Number of Positions	Contact Finish	Connector Style	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 630-W15-240-012	Shielded	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	0.406 in	10.3 mm	5 A	IP67 - Dust Tight Waterproof	Black	Through Hole Right Angle	Nickel Plated Steel	2	Solder	Flash	2	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	Signal	Receptacle Female Sockets	15	Gold	D-Sub	UL94 V-0
EDAC Inc. 630-W15-340-015	Mounting Brackets Shielded	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	0.406 in	10.3 mm	5 A	IP67 - Dust Tight Waterproof	Black	Through Hole Right Angle	Nickel Plated Steel	2	Solder		2	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	Signal	Receptacle Female Sockets	15	Gold	D-Sub	UL94 V-0	15 µin	0.38 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 12.86

General part information

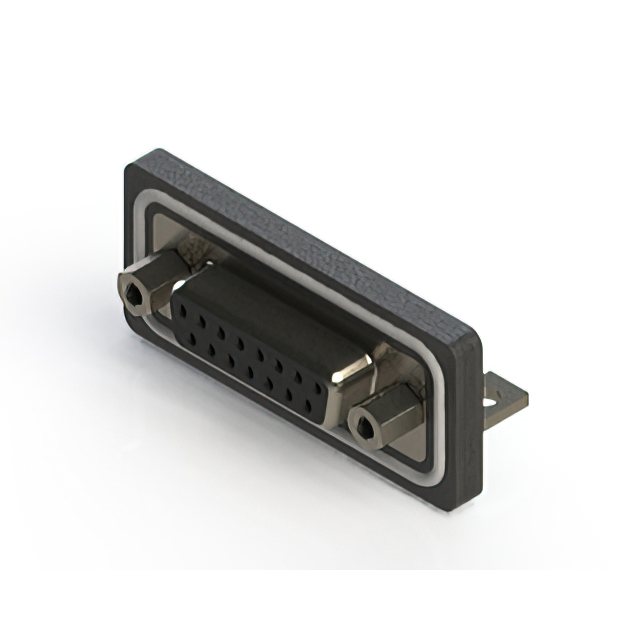

15 Position D-Sub Receptacle, Female Sockets Connector
