1418994-1

Active

TE Connectivity AMP Connectors

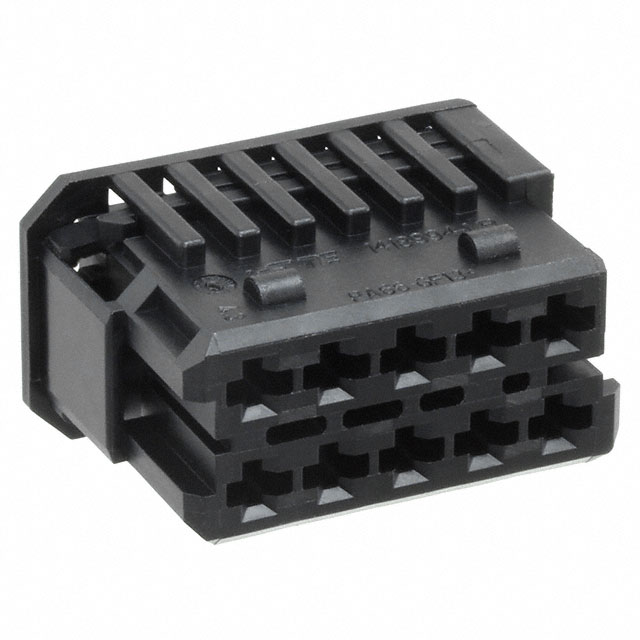

CONN PLUG HSG 10POS 5.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 10POS 5.50MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Plug Black 0.217" (5.50mm)

Technical documentation and resources

Specification	1418994-1	1418994 Series

	-	-
Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	10	10
Number of Rows	2	2
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5.5 mm	5.5 mm
Pitch [x]	0.217 in	0.217 in
Row Spacing	0.291 in	0.291 in
Row Spacing	7.4 mm	7.4 mm

Part	Contact Termination	Color	Insulation Material	Connector Type	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Row Spacing	Row Spacing	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type
TE Connectivity AMP Connectors 1418994-1	Crimp	Black	Polyamide (PA66), Nylon 6/6, Glass Filled	Plug	2	Female Socket	-40 °C	120 °C	Contacts Not Included	0.291 in	7.4 mm	10	5.5 mm	0.217 in	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-1418994-1
