JAZZ-AE-S

Active

Orient Display

2.7" RGB LED BACKLIGHT WIRED

Search across all available documentation for this part.

Active

Orient Display

2.7" RGB LED BACKLIGHT WIRED

Technical Specifications

Parameters and characteristics for this part

Specification	JAZZ-AE-S

CCT (K) [custom]	623 nm
CCT (K) [custom]	468 nm
CCT (K) [custom]	523 nm
Color	Green, Blue, Red
Current - Test	60 mA
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Size / Dimension [x]	71.2 mm
Size / Dimension [y]	48.5 mm
Size / Dimension [z]	5.2 mm
Style	Rectangular
Termination Style	Wire Leads
Voltage - Forward (Vf) (Typ) [custom]	3 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	2.9 V

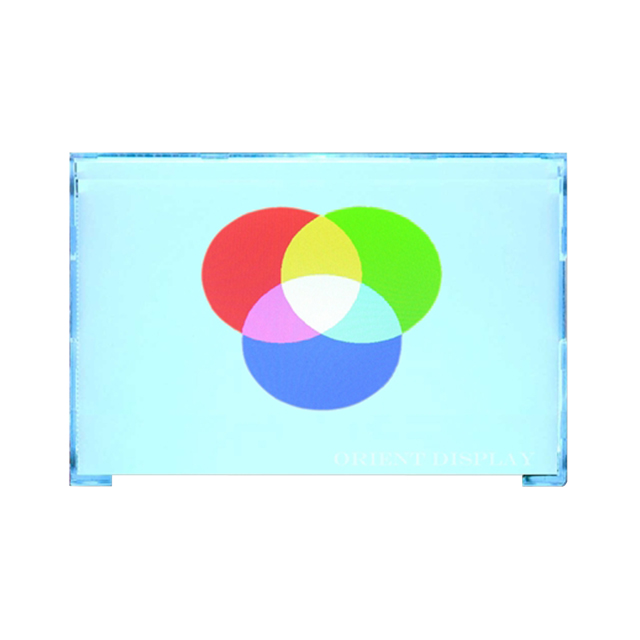

2.7" RGB LED BACKLIGHT WIRED

Part	Termination Style	Style	CCT (K) [custom]	CCT (K) [custom]	CCT (K) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Color
Orient Display JAZZ-AE-S	Wire Leads	Rectangular	623 nm	468 nm	523 nm	3 V	2 V	2.9 V	60 mA	70 °C	-30 ░C	5.2 mm	71.2 mm	48.5 mm	Blue, Green, Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.12

General part information

2.7" RGB LED BACKLIGHT WIRED
