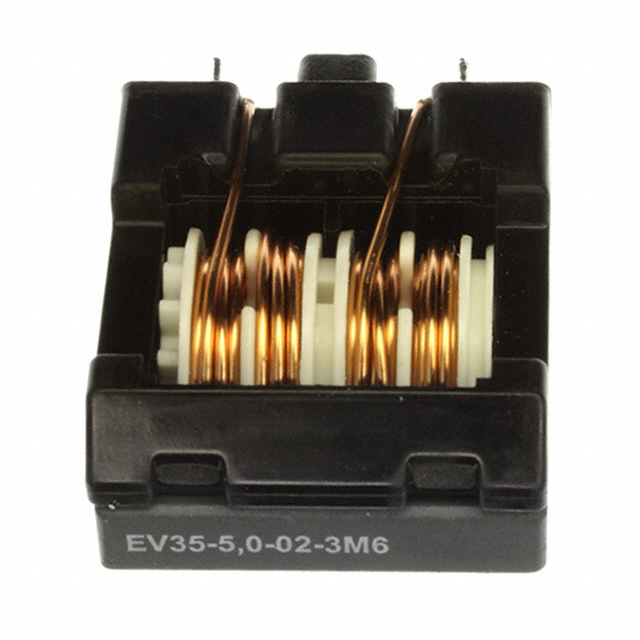

EV35-5.0-02-3M6
ActiveTE Connectivity Raychem Cable Protection
CMC 3.6MH 5A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EV35-5.0-02-3M6 |
|---|---|
| Current Rating (Max) [Max] | 5 A |
| DC Resistance (DCR) (Max) | 33 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 1.681 in |
| Height (Max) [Max] | 42.7 mm |
| Inductance @ Frequency | 3.6 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 36 mm |
| Size / Dimension [x] | 1.417 in |
| Size / Dimension [y] | 0.965 in |
| Size / Dimension [y] | 24.5 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.49 | |
| 10 | $ 5.34 | |||
| 25 | $ 4.90 | |||
| 50 | $ 4.62 | |||
| 100 | $ 4.40 | |||
| 250 | $ 4.33 | |||
| 500 | $ 4.22 | |||
Description
General part information
EV35-5 Series
3.6 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 5A DCR 33mOhm (Typ)
