2-822114-3

Obsolete

TE Connectivity AMP Connectors

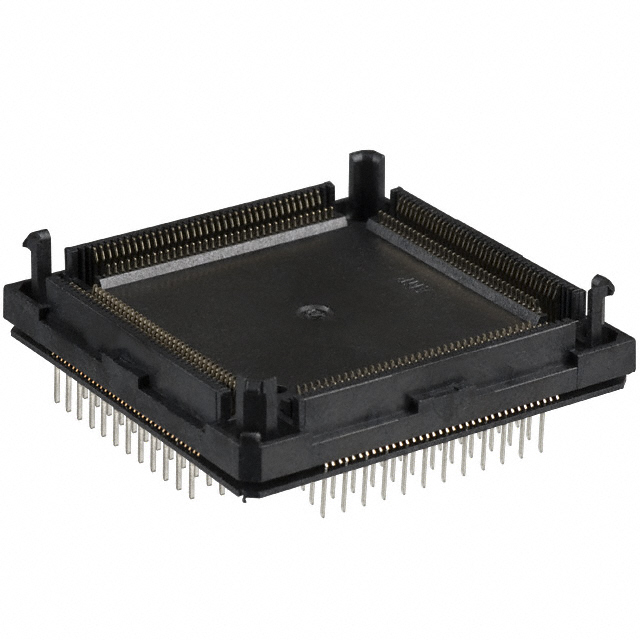

CONN SOCKET PQFP 144POS TIN-LEAD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN SOCKET PQFP 144POS TIN-LEAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-822114-3	822114 Series

Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	5.08 µm	5.08 µm
Contact Finish Thickness - Mating	200 µin	200 µin
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Material - Mating	Phosphor Bronze	Phosphor Bronze
Contact Material - Post	Phosphor Bronze	Phosphor Bronze
Features	Closed Frame	Closed Frame
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	144	144 - 160
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Pitch - Post	1.27 mm	1.27 mm
Pitch - Post	0.05 in	0.05 in
Termination	Solder	Solder
Termination Post Length	0.135 in	0.135 in
Termination Post Length	3.43 mm	3.43 mm
Type	QFP	QFP

CONN SOCKET PQFP 144POS TIN-LEAD

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Housing Material	Mounting Type	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Features	Termination Post Length	Termination Post Length	Contact Material - Mating	Contact Finish - Mating	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Number of Positions or Pins (Grid)
TE Connectivity AMP Connectors 822114-3	200 µin	5.08 µm	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Through Hole	Solder	UL94 V-0	0.05 in	1.27 mm	Tin-Lead	Closed Frame	0.135 in	3.43 mm	Phosphor Bronze	Tin-Lead	1.27 mm	0.05 in	5.08 µm	200 µin	QFP	144
TE Connectivity AMP Connectors 2-822114-4	200 µin	5.08 µm	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Through Hole	Solder	UL94 V-0	0.05 in	1.27 mm	Tin-Lead	Closed Frame	0.135 in	3.43 mm	Phosphor Bronze	Tin-Lead	1.27 mm	0.05 in	5.08 µm	200 µin	QFP	160
TE Connectivity AMP Connectors 2-822114-3	200 µin	5.08 µm	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Through Hole	Solder	UL94 V-0	0.05 in	1.27 mm	Tin-Lead	Closed Frame	0.135 in	3.43 mm	Phosphor Bronze	Tin-Lead	1.27 mm	0.05 in	5.08 µm	200 µin	QFP	144

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

144 (4 x 36) Pos QFP Socket Tin-Lead Through Hole
