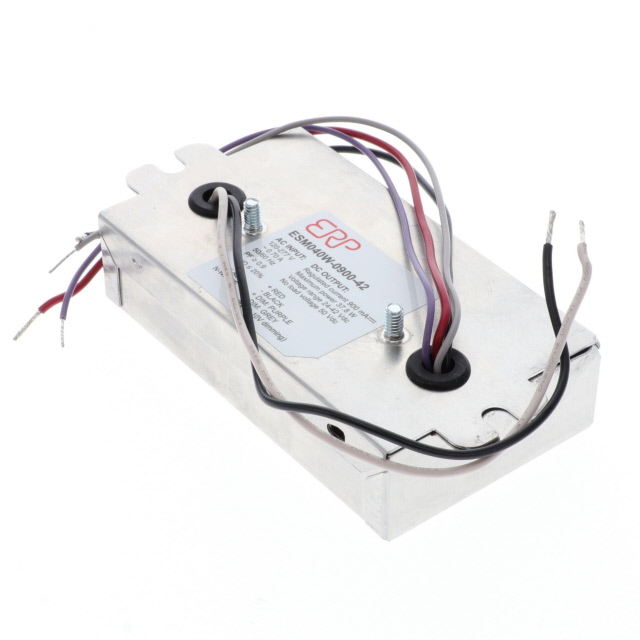

ESM040W-0900-42
ActiveERP Power, LLC
LED DRIVER CC AC/DC 28-42V 900MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESM040W-0900-42
ActiveERP Power, LLC
LED DRIVER CC AC/DC 28-42V 900MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESM040W-0900-42 | ESM040W Series |
|---|---|---|
| Approval Agency | CB, cUL, FC, UL, CE, cRUcs | CB, cUL, FC, UL, CE, cRUcs |
| Current - Output (Max) [Max] | 900 mA | 800 - 940 mA |
| Dimming | ELV, TRIAC | ELV, TRIAC |
| Efficiency | 87 % | 87 % |
| Features | OTP, SCP, OCP | OTP, SCP, OCP |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Power (Watts) | 38 W | 34 - 40 W |
| Ratings | NEMA 410, IP20 | NEMA 410, IP20, IP64 |
| Size / Dimension [x] | 106.7 mm, 4.2 in | 4.2 - 106.7 mm |
| Size / Dimension [y] | 60.3 mm, 2.37 in | 2.37 - 60.3 mm |
| Size / Dimension [z] | 0.99 in, 25.2 mm | 0.99 - 25.2 in |
| Termination Style | Wire Leads | Wire Leads |
| Topology | AC DC Converter | AC DC Converter |
| Type | Constant Current | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC | 120 VAC |
| Voltage - Output [Max] | 42 V | 42 - 43 V |
| Voltage - Output [Min] | 28 V | 28 - 32 V |
| Weight | 252 g | 252 g |
| Weight | 0.556 lb | 0.556 lb |
ESM040W Series
LED DRIVER CC AC/DC 28-42V 800MA
| Part | Topology | Weight | Weight | Voltage - Output [Min] | Voltage - Output [Max] | Features | Mounting Type | Termination Style | Number of Outputs | Efficiency | Voltage - Input (Min) [Min] | Approval Agency | Power (Watts) | Dimming | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Type | Ratings | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ERP Power, LLC ESM040W-0800-42 | AC DC Converter | 252 g | 0.556 lb | 28 V | 42 V | OCP, OTP, SCP | Chassis Mount | Wire Leads | 1 | 87 % | 120 VAC | CB, CE, cRUcs, cUL, FC, UL | 34 W | ELV, TRIAC | 0.99 in, 25.2 mm | 4.2 in, 106.7 mm | 2.37 in, 60.3 mm | -30 ░C | 90 °C | 277 VAC | Constant Current | IP20, NEMA 410 | 800 mA |
ERP Power, LLC ESM040W-0900-42 | AC DC Converter | 252 g | 0.556 lb | 28 V | 42 V | OCP, OTP, SCP | Chassis Mount | Wire Leads | 1 | 87 % | 120 VAC | CB, CE, cRUcs, cUL, FC, UL | 38 W | ELV, TRIAC | 0.99 in, 25.2 mm | 4.2 in, 106.7 mm | 2.37 in, 60.3 mm | -30 ░C | 90 °C | 277 VAC | Constant Current | IP20, NEMA 410 | 900 mA |
ERP Power, LLC ESM040W-0940-43 | AC DC Converter | 252 g | 0.556 lb | 32 V | 43 V | OCP, OTP, SCP | Chassis Mount | Wire Leads | 1 | 87 % | 120 VAC | CB, CE, cRUcs, cUL, FC, UL | 40 W | ELV, TRIAC | 0.99 in, 25.2 mm | 4.2 in, 106.7 mm | 2.37 in, 60.3 mm | -30 ░C | 90 °C | 277 VAC | Constant Current | IP20, IP64, NEMA 410 | 940 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.01 | |
| 5 | $ 30.32 | |||
| 10 | $ 28.64 | |||
| 25 | $ 27.38 | |||
| 50 | $ 26.11 | |||
| 100 | $ 25.27 | |||
| 250 | $ 23.16 | |||
Description
General part information
ESM040W Series
900mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
