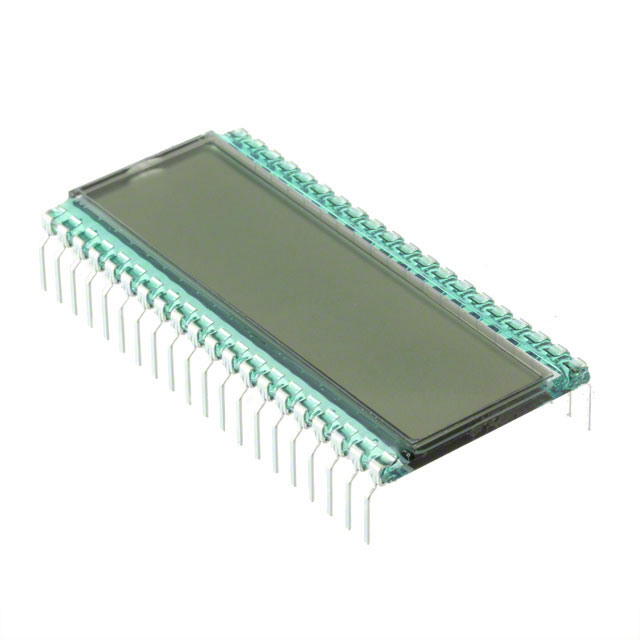

LCD-A401C39TR
ActiveLumex Opto/Components Inc.
LCD MOD 4 DIG 4 X 1 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCD-A401C39TR
ActiveLumex Opto/Components Inc.
LCD MOD 4 DIG 4 X 1 REFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LCD-A401C39TR | LCD-A401 Series |
|---|---|---|
| Background Color | Gray | Gray |
| Backlight | Without Backlight | Without Backlight |
| Character Format | 7-Segment | 7-Segment |
| Character Size | - | 9 mm |
| Character Size | - | 18 mm |
| Display Format [x] | 4 | 4 |
| Display Format [y] | 1 | 1 |
| Display Mode | Reflective | Reflective |
| Display Type | TN - Twisted Nematic | TN - Twisted Nematic |
| Interface | Parallel | Parallel |
| Number of Characters | 4 | 4 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outline L x W x H [x] | 50.8 mm | 50.8 - 69.85 mm |
| Outline L x W x H [y] | 22.73 mm | 22.73 - 38.1 mm |
| Outline L x W x H [z] | 2.5 mm | 2.18 - 2.8 mm |
| Text Color | Black | Black |
| Viewing Area [x] | 43.18 mm | 43.18 - 62.23 mm |
| Viewing Area [y] | 12.7 mm | 12.7 - 30.48 mm |
LCD-A401 Series
LCD MODULE 4 DIG 4 X 1 TRNSFL
| Part | Character Format | Viewing Area [x] | Viewing Area [y] | Display Format [y] | Display Format [x] | Number of Characters | Operating Temperature [Min] | Operating Temperature [Max] | Text Color | Background Color | Display Mode | Outline L x W x H [y] | Outline L x W x H [z] | Outline L x W x H [x] | Display Type | Backlight | Character Size [y] | Character Size [z] | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. LCD-A401C39TF | 7-Segment | 43.18 mm | 12.7 mm | 1 | 4 | 4 | |||||||||||||
Lumex Opto/Components Inc. LCD-A401C71TR | 7-Segment | 62.23 mm | 30.48 mm | 1 | 4 | 4 | -40 °C | 105 ░C | Black | Gray | Reflective | 38.1 mm | 2.18 mm | 69.85 mm | TN - Twisted Nematic | Without Backlight | 9 mm | 18 mm | Parallel |
Lumex Opto/Components Inc. LCD-A401C52TR | 7-Segment | 45.72 mm | 17.78 mm | 1 | 4 | 4 | -40 °C | 105 ░C | Black | Gray | Reflective | 30.48 mm | 2.8 mm | 50.8 mm | TN - Twisted Nematic | Without Backlight | Parallel | ||
Lumex Opto/Components Inc. LCD-A401C39TR | 7-Segment | 43.18 mm | 12.7 mm | 1 | 4 | 4 | -40 °C | 105 ░C | Black | Gray | Reflective | 22.73 mm | 2.5 mm | 50.8 mm | TN - Twisted Nematic | Without Backlight | Parallel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCD-A401 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight Parallel 50.80mm x 22.73mm x 2.50mm
