UJ2-MIBH2-4-SMT-TR
ActiveCUI Devices

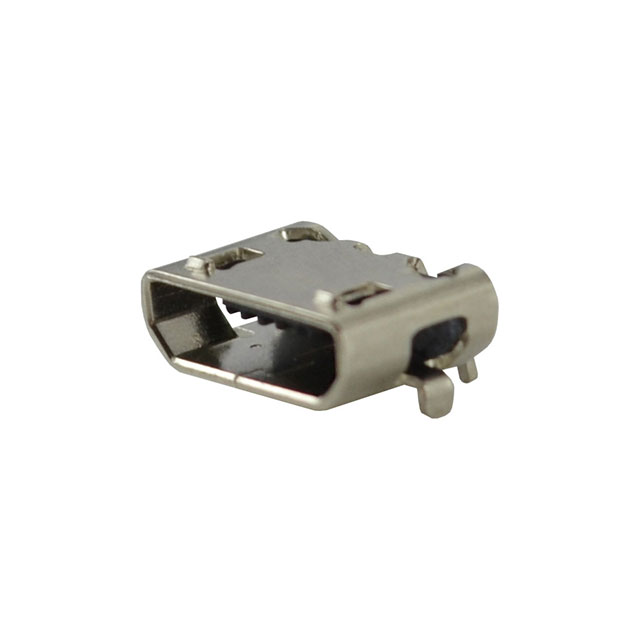

CONN RCPT USB2.0 MICRO B SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ2-MIBH2-4-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 MICRO B SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ2-MIBH2-4-SMT-TR |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A, 0.5 A |
| Features | Solder Retention |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
UJ2-MIBH Series
| Part | Gender | Connector Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Number of Contacts | Voltage - Rated | Current Rating (Amps) | Mating Cycles | Shell/Shielding Material | Specifications | Insulation Color | Shielding | Number of Ports | Termination | Contact Finish | Ingress Protection | Features | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Receptacle | USB - micro B | Surface Mount Right Angle | -30 ░C | 85 °C | Flange Horizontal | 5 | 30 VAC | 1.8 A | 10000 | Stainless Steel | USB 2.0 | Black | Shielded | 1 | Solder | Gold | IP67 - Dust Tight Waterproof | ||
CUI Devices | Receptacle | USB - micro B | Surface Mount Right Angle Through Hole | -25 °C | 85 °C | Horizontal | 5 | 30 VAC | 0.5 A 1.8 A | 10000 | Stainless Steel | USB 2.0 | Black | 1 | Solder | Gold | IP67 - Dust Tight Waterproof | Board Guide | UL94 V-0 | |
CUI Devices | Receptacle | USB - micro B | Surface Mount | -30 ░C | 85 °C | Horizontal | 5 | 5 VAC | 0.5 A 1.8 A | 3000 | Copper Alloy | USB 2.0 | Black | Shielded | 1 | Solder | Gold | Solder Retention | UL94 V-0 | |
CUI Devices | Receptacle | USB - micro B | Surface Mount Right Angle Through Hole | -25 °C | 85 °C | Horizontal | 5 | 30 VAC | 0.5 A 1.8 A | 10000 | Stainless Steel | USB 2.0 | Black | Shielded | 1 | Solder | Gold | Solder Retention | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.54 | |||
| Digi-Reel® | 1 | $ 0.88 | ||
| 10 | $ 0.74 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.54 | |||
| Tape & Reel (TR) | 1750 | $ 0.53 | ||
| 3500 | $ 0.51 | |||
| 5250 | $ 0.50 | |||
| 8750 | $ 0.47 | |||
| 12250 | $ 0.46 | |||
Description
General part information
UJ2-MIBH Series
USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
