1300-00023

Active

TE CONNECTIVITY

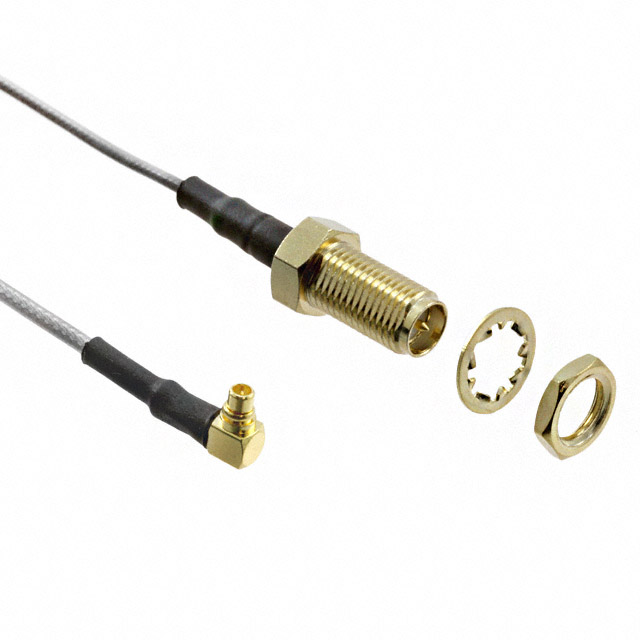

CBL ASSY RPSMA-MMCX JACK-PLUG 7"

Search across all available documentation for this part.

Active

TE CONNECTIVITY

CBL ASSY RPSMA-MMCX JACK-PLUG 7"

Technical Specifications

Parameters and characteristics for this part

Specification	1300-00023

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Gray
Features	Shielded
Frequency - Max [Max]	2.5 GHz
Length	177.8 mm
Length	7 in
Overall Impedance	50 Ohms
Style	RP-SMA to MMCX

CBL ASSY RPSMA-MMCX JACK-PLUG 7"

Part	Frequency - Max [Max]	Length	Length	Color	2nd Connector	1st Connector Mounting Type	Overall Impedance	1st Connector Mounting Feature	1st Connector	Style	2nd Contact Gender	Cable Type	1st Contact Gender	2nd Connector Mounting Type	Cable Impedance	Features
TE CONNECTIVITY 1300-00023	2.5 GHz	177.8 mm	7 in	Gray	MMCX Plug, Right Angle	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RP-SMA Jack	RP-SMA to MMCX	Male	RG-316	Male	Free Hanging (In-Line)	50 Ohms	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to MMCX RG-316 7.000" (177.80mm)
