Description
General part information

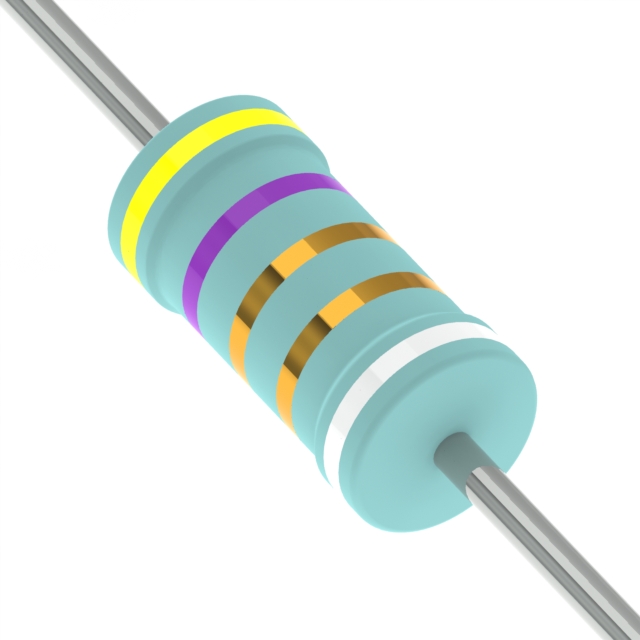

FKN7WSJR-91-4R7
4.7 Ohms ±5% 7W Through Hole Resistor Axial Flame Proof, Fusible, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | FKN7WSJR-91-4R7 |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety, Fusible |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 7 W |
| Resistance | 4.7 Ohm |
| Size / Dimension Diameter | 0.315 in |
| Size / Dimension Length | 0.965 in |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
