Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MCP4728EV | MCP4728 Series |
|---|---|---|
| Architecture | - | String DAC |
| DAC Type | Voltage | Voltage |
| Data Interface | I2C | I2C |
| Differential Output | - | False |
| Grade | - | Automotive |
| INL/DNL (LSB) | - | 2 LSB |
| INL/DNL (LSB) | - | 2 LSB |
| INL/DNL (LSB) | - | -2 LSB |
| INL/DNL (LSB) | - | -2 LSB |
| Mounting Type | - | Surface Mount |
| Number of Bits | 12 | 12 |
| Number of D/A Converters | - | 4 |
| Number of DAC's | 4 | 4 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | Voltage - Buffered |
| Package / Case | - | 10-TFSOP, 10-MSOP |
| Qualification | - | AEC-Q100 |
| Reference Type | - | Internal, Supply |
| Settling Time | 6 µs | 6 µs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-MSOP |
| Utilized IC / Part | MCP4728 | MCP4728 |
| Voltage - Supply, Analog | - | 5.5 V |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Digital | - | 5.5 V |
| Voltage - Supply, Digital | - | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
MCP4728 Series
SERIAL INPUT LOADING, 6 US SETTLING TIME, 12-BIT DAC, PDSO10, PLASTIC, MSOP-10
| Part | Package / Case | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Data Interface | INL/DNL (LSB) [Max] [custom] | INL/DNL (LSB) [Max] | INL/DNL (LSB) [Min] [custom] | INL/DNL (LSB) [Min] [custom] | Number of Bits | Number of D/A Converters | Output Type | Differential Output | Mounting Type | Architecture | Reference Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Settling Time | Supplier Device Package | Number of DAC's | Supplied Contents | DAC Type | Utilized IC / Part | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MCP4728A1-E/UNMCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.
The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up. | 10-MSOP, 10-TFSOP | 5.5 V | 2.7 V | I2C | 2 LSB | 2 LSB | -2 LSB | -2 LSB | 12 | 4 | Voltage - Buffered | Surface Mount | String DAC | Internal, Supply | 125 °C | -40 °C | 5.5 V | 2.7 V | 6 µs | 10-MSOP | |||||||
Microchip Technology MCP4728A0-E/UNMCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.
The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up. | 10-MSOP, 10-TFSOP | 5.5 V | 2.7 V | I2C | 2 LSB | 2 LSB | -2 LSB | -2 LSB | 12 | 4 | Voltage - Buffered | Surface Mount | String DAC | Internal, Supply | 125 °C | -40 °C | 5.5 V | 2.7 V | 6 µs | 10-MSOP | |||||||
Microchip Technology MCP4728T-E/UNMCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.
The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up. | 10-MSOP, 10-TFSOP | 5.5 V | 2.7 V | I2C | 2 LSB | 2 LSB | -2 LSB | -2 LSB | 12 | 4 | Voltage - Buffered | Surface Mount | String DAC | Internal, Supply | 125 °C | -40 °C | 5.5 V | 2.7 V | 6 µs | 10-MSOP | |||||||
Microchip Technology MCP4728A0T-E/UNMCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.
The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up. | 10-MSOP, 10-TFSOP | 5.5 V | 2.7 V | I2C | 2 LSB | 2 LSB | -2 LSB | -2 LSB | 12 | 4 | Voltage - Buffered | Surface Mount | String DAC | Internal, Supply | 125 °C | -40 °C | 5.5 V | 2.7 V | 6 µs | 10-MSOP | |||||||

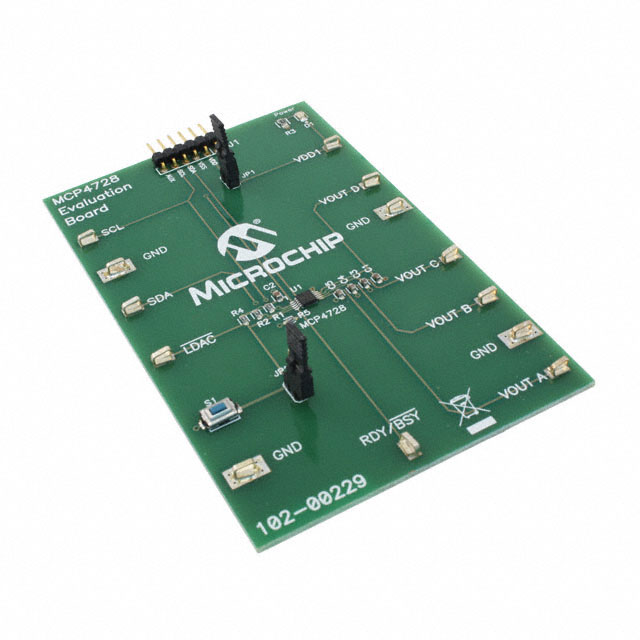

Microchip Technology MCP4728EVMCP4728 12 Bit Samples Per Second Digital to Analog Converter (DAC) Evaluation Board | I2C | 12 | 6 µs | 4 | Board(s) | Voltage | MCP4728 | ||||||||||||||||||||
Microchip Technology MCP4728A1T-E/UNMCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.
The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up. | 10-MSOP, 10-TFSOP | 5.5 V | 2.7 V | I2C | 2 LSB | 2 LSB | -2 LSB | -2 LSB | 12 | 4 | Voltage - Buffered | Surface Mount | String DAC | Internal, Supply | 125 °C | -40 °C | 5.5 V | 2.7 V | 6 µs | 10-MSOP | |||||||
Microchip Technology MCP4728A0T-E/UNVAOMCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.
The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up. | 10-MSOP, 10-TFSOP | 5.5 V | 2.7 V | I2C | 2 LSB | 2 LSB | -2 LSB | -2 LSB | 12 | 4 | Voltage - Buffered | Surface Mount | String DAC | Internal, Supply | 125 °C | -40 °C | 5.5 V | 2.7 V | 6 µs | 10-MSOP | AEC-Q100 | Automotive | |||||
Microchip Technology MCP4728A4T-E/UNVAOMCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.
The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up. | 10-MSOP, 10-TFSOP | 5.5 V | 2.7 V | I2C | 2 LSB | 2 LSB | -2 LSB | -2 LSB | 12 | 4 | Voltage - Buffered | Surface Mount | String DAC | Internal, Supply | 125 °C | -40 °C | 5.5 V | 2.7 V | 6 µs | 10-MSOP | AEC-Q100 | Automotive | |||||
Microchip Technology MCP4728-E/UNMCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.
The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up. | 10-MSOP, 10-TFSOP | 5.5 V | 2.7 V | I2C | 2 LSB | 2 LSB | -2 LSB | -2 LSB | 12 | 4 | Voltage - Buffered | Surface Mount | String DAC | Internal, Supply | 125 °C | -40 °C | 5.5 V | 2.7 V | 6 µs | 10-MSOP |
Description
General part information
MCP4728 Series
MCP4728 12 Bit Samples Per Second Digital to Analog Converter (DAC) Evaluation Board
