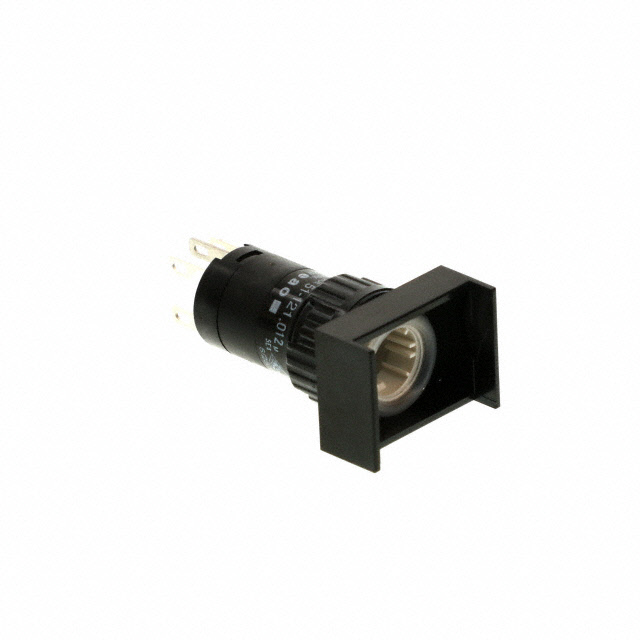

51-121.012

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-121.012	51-121 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)	Rectangular, Button (Not Included)
Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles	2000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom
Termination Style	-	Solder Lug
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

SWITCH PB DPST-NO/NC 5A 250V

Part	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mechanical Life	Switch Function	Circuit	Type	Ingress Protection	Actuator Marking	Voltage Rating - AC	Mounting Type	Actuator Type	Termination Style
EAO 51-121.012	16 mm	55 °C	-25 °C	5 A	2000000 Cycles	Off-Mom, On-Mom	DPST-NO/NC	Standard	IP65 - Dust Tight, Water Resistant	No Marking	250 V	Panel Mount, Front	Rectangular, Button (Not Included)
EAO 51-121.025	16 mm	55 °C	-25 °C	5 A	2000000 Cycles	Off-Mom, On-Mom	DPST-NO/NC	Standard	IP65 - Dust Tight, Water Resistant	No Marking	250 V	Panel Mount, Front	Rectangular, Button (Not Included)	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
