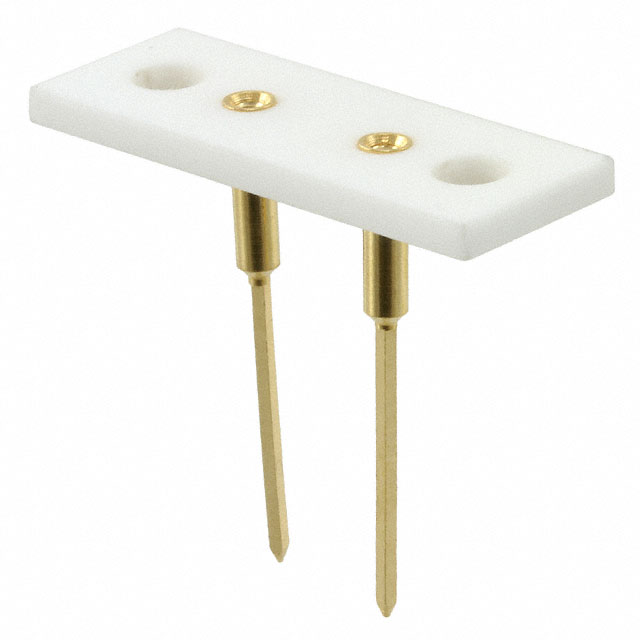

AXUV20ACS

Active

Opto Diode Corp

SOCKET CERM FOR AXUV20A/UVG20S

Search across all available documentation for this part.

Active

Opto Diode Corp

SOCKET CERM FOR AXUV20A/UVG20S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SOCKET CERM FOR AXUV20A/UVG20S

Technical documentation and resources

Specification	AXUV20ACS	AXUV20 Series

Accessory Type	Socket	Socket
Active Area	-	3 - 19.7 mm²
Current - Dark (Typ)	-	100 nA
For Use With/Related Products	UVG20S, AXUV20A, AXUV20HS1, SXUV20HS1	Photodiode, UVG20S, AXUV20A, AXUV20HS1, SXUV20HS1
Mounting Type	-	Through Hole
Operating Temperature	-	-10 °C
Operating Temperature	-	40 °C
Response Time	-	200 ns
Spectral Range	-	250 nm
Spectral Range	-	1100 nm
Voltage - DC Reverse (Vr) (Max)	-	160 V
Wavelength	-	820 nm

Part	Mounting Type	Wavelength	Active Area	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]	For Use With/Related Products	Accessory Type	Current - Dark (Typ)	Voltage - DC Reverse (Vr) (Max) [Max]
Opto Diode Corp AXUV20ELG	Through Hole	820 nm	3 mm²	200 ns	-10 °C	40 °C	250 nm	1100 nm
Opto Diode Corp AXUV20A									Photodiode	Socket
Opto Diode Corp AXUV20HS1	Through Hole	820 nm	19.7 mm²		-10 °C	40 °C	250 nm	1100 nm			100 nA	160 V
Opto Diode Corp AXUV20ACS									AXUV20A, AXUV20HS1, SXUV20HS1, UVG20S	Socket
