CIH02T2N7SNC
ObsoleteSamsung Electro-Mechanics
FIXED IND 2.7NH 200MA 800MOHM SM
CIH02T2N7SNC
ObsoleteSamsung Electro-Mechanics
FIXED IND 2.7NH 200MA 800MOHM SM
Description
General part information
CIH02T2N7SNC

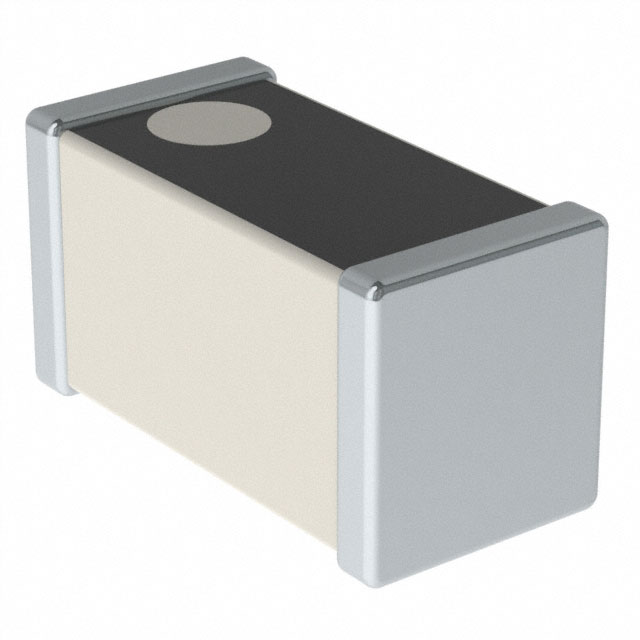

2.7 nH Unshielded Multilayer Inductor 200 mA 800mOhm Max 01005 (0402 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CIH02T2N7SNC |
|---|---|
| Current Rating | 0.2 A |
| DC Resistance (DCR) (Max) | 800 mOhm |
| Frequency - Self Resonant | 7 GHz |
| Height - Seated (Max) | 0.009 in |
| Inductance | 2.7 nH |
| Inductance Frequency - Test | 100 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 01005 (0402 Metric) |
| Package Name | 01005 (0402 Metric) |
| Q | 2 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.016 in |
| Size / Dimension Width | 0.008 in |
| Tolerance | 0.3 nH |
| Type | Multilayer |
