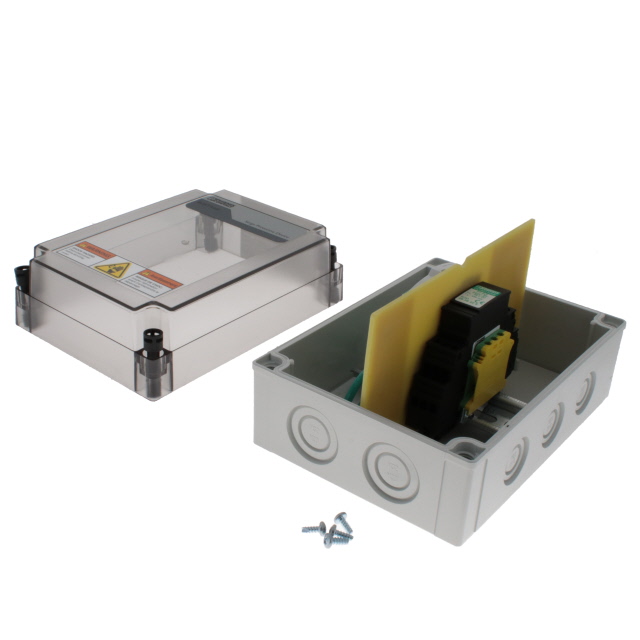

2908685
ObsoletePhoenix Contact
SPD TYP 2/TYP 3 150V/150VDC MCOV
2908685
ObsoletePhoenix Contact
SPD TYP 2/TYP 3 150V/150VDC MCOV
Description
General part information
2908685
SPD TYP 2/TYP 3 150V/150VDC MCOV
Technical Specifications
Parameters and characteristics for this part
| Specification | 2908685 |
|---|---|
| Approval Agency | UL, cULus |
| Current - Discharge (Max) | 10 kA |
| Current - Discharge (Nom) | 5 kA |
| Current - Short Circuit Rating (SCCR) | 10 kA |
| Form | Module Only |
| Mounting Type | Chassis Mount |
| Number of Poles | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Type 2, Type 3 |
| Voltage - Continuous Operating (Max) (MCOV) AC | 150 VAC |
| Voltage - Continuous Operating (Max) (MCOV) DC | 150 VDC |
| Voltage - Protection Rating (VPR) | 1 kV |
