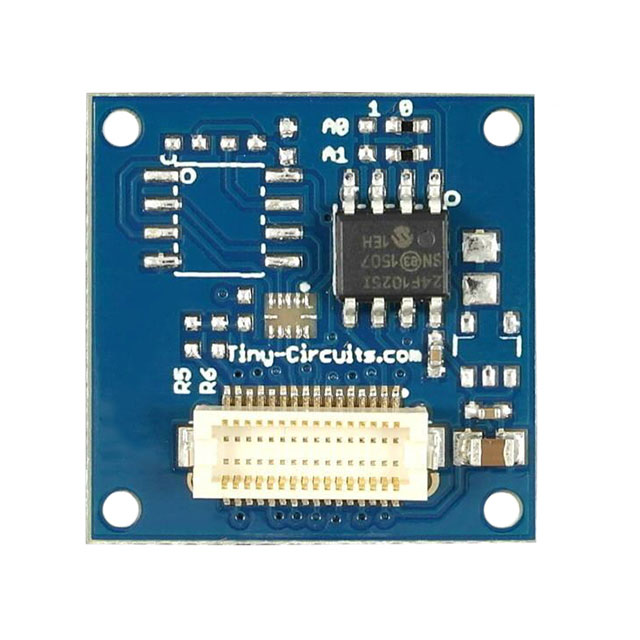

ASD2202-R-E
ActiveTinyCircuits
EEPROMTINYSHIELD
Deep-Dive with AI
Search across all available documentation for this part.
ASD2202-R-E
ActiveTinyCircuits
EEPROMTINYSHIELD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ASD2202-R-E | ASD2202 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Function | EEPROM | Flash, SRAM, EEPROM |
| Platform | TinyDuino | TinyDuino |
| Type | Memory | Memory |
| Utilized IC / Part | 24FC1025 | W25Q80DV, 23LC1024, 24FC1025 |
ASD2202 Series
FLASHMEMORYTINYSHIELD
| Part | Platform | Type | Utilized IC / Part | Function | Contents |
|---|---|---|---|---|---|
TinyCircuits ASD2202-R-F | TinyDuino | Memory | W25Q80DV | Flash | Board(s) |
TinyCircuits ASD2202-R-S | TinyDuino | Memory | 23LC1024 | SRAM | Board(s) |
TinyCircuits ASD2202-R-E | TinyDuino | Memory | 24FC1025 | EEPROM | Board(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2 | $ 9.95 | |
Description
General part information
ASD2202 Series
24FC1025 EEPROM Memory TinyDuino Platform Evaluation Expansion Board
Documents
Technical documentation and resources
