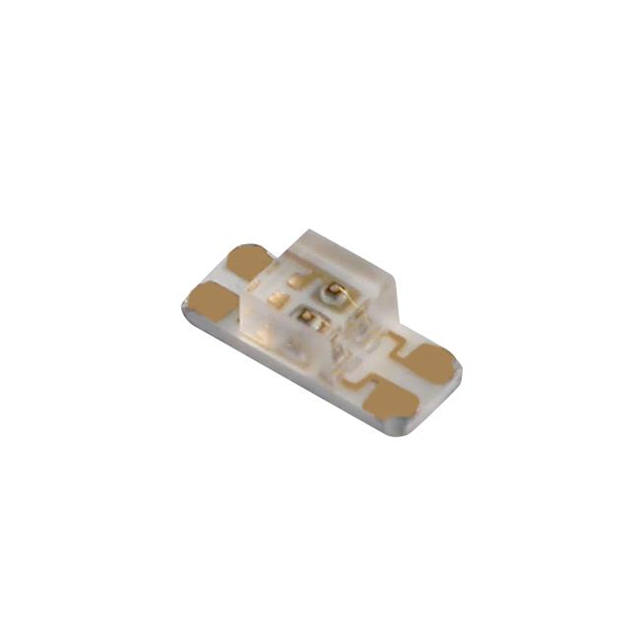

XZDGKMDK116W10MA-1
Green, Red 525nm Green, 630nm Red LED Indication - Discrete 3V Green, 1.85V Red 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | XZDGKMDK116W10MA-1 |
|---|---|
| Color | Green, Red |
| Configuration | Independent |
| Current - Test (Green) | 10 mA |
| Current - Test (Red) | 10 mA |
| Current - Test Colors | Red, Green |
| Height (Max) | 1.3 mm |
| Lens Color | Colorless |
| Lens Length | 1.4 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Clear |
| Lens Width | 1.25 mm |
| Millicandela Rating (Green) | 248 mcd |
| Millicandela Rating (Red) | 98 mcd |
| Millicandela Rating Colors | Red, Green |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Package Name | 4-SMD |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 1.25 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) (Green) | 3 V |
| Voltage - Forward (Vf) (Typ) (Red) | 1.85 V |
| Voltage - Forward (Vf) (Typ) Color | Green, Red |
| Wavelength - Dominant (Green) | 525 nm |
| Wavelength - Dominant (Red) | 630 nm |
| Wavelength - Dominant Color | Green, Red |
| Wavelength - Peak (Green) | 515 nm |
| Wavelength - Peak (Red) | 645 nm |
| Wavelength - Peak Colors | Red, Green |
