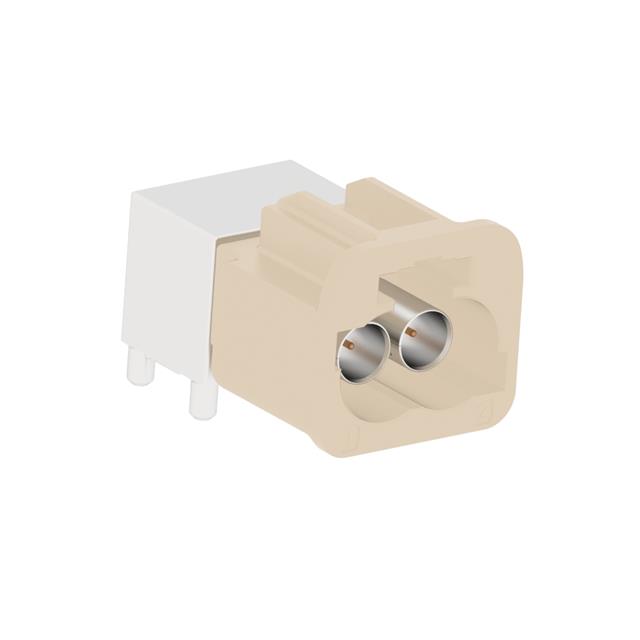

FM2-NBRP-PCB-1

Active

AMPHENOL RF

AUTOMATE TYPE A MINI-FAKRA DUAL

Search across all available documentation for this part.

Active

AMPHENOL RF

AUTOMATE TYPE A MINI-FAKRA DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	FM2-NBRP-PCB-1

Body Finish	Tin
Body Material	Zinc Alloy
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	Fakra, Miniature Coaxial, Twinaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code B
Frequency - Max [Max]	9 GHz
Housing Color	White
Impedance	50 Ohms
Mating Cycles	25
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

AUTOMATE TYPE A MINI-FAKRA DUAL

Part	Fastening Type	Impedance	Center Contact Plating	Dielectric Material	Mounting Type	Body Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Center Contact Material	Features	Number of Ports	Body Finish	Housing Color	Connector Type	Contact Termination	Voltage Rating	Shield Termination	Mating Cycles
AMPHENOL RF FM2-NBRP-PCB-1	Latch Lock	50 Ohms	Gold	Liquid Crystal Polymer (LCP)	Through Hole, Right Angle	Zinc Alloy	9 GHz	-40 °C	105 ░C	Fakra, Miniature Coaxial, Twinaxial	Copper Alloy	Code B	1	Tin	White	Male Pin, Plug	Solder	335 V	Solder	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Miniature Coaxial, Fakra, Twinaxial Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
