PLR75C-307

Active

Cinch Connectivity Solutions Trompeter

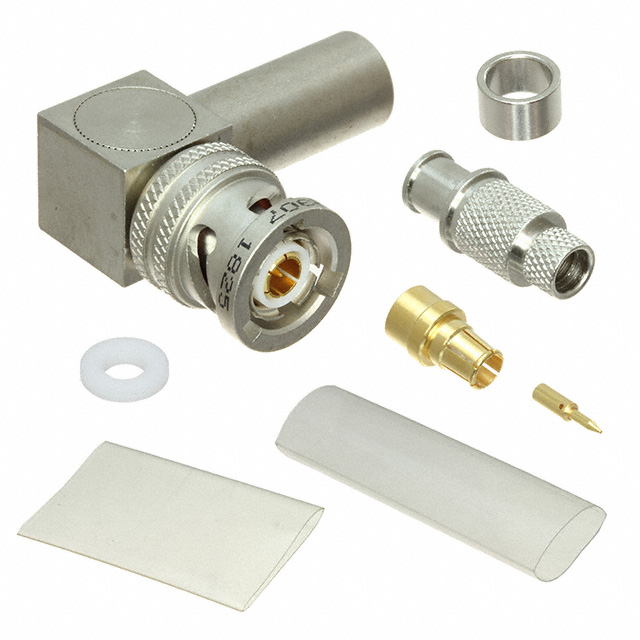

CONN TRB PLUG R/A CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

PLR75C-307

Active

Cinch Connectivity Solutions Trompeter

CONN TRB PLUG R/A CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 108.49
		10	$ 94.46

Description

General part information

PLR75C Series

TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line), Right Angle Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLR75C-307	PLR75C Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	TRC-75-1	M17/176-00002, Raychem 7528A5314, TWCP-124-3, Raychem 10602, TRC-75-2, TRC-75-1
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	Twinaxial/Triaxial, TRB	Twinaxial/Triaxial, TRB
Connector Type	Plug, Male Pin (Concentric)	Plug, Male Pin (Concentric)
Contact Termination	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Three Lug
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Strain Relief, 1 Connector, 1 Heat Shrink	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	400 V	400 V

PLR75C Series

CONN TRB PLUG R/A CRIMP

Part	Cable Group	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Impedance	Mating Cycles	Includes	Fastening Type	Center Contact Material	Number of Ports	Contact Termination	Features	Shield Termination	Mounting Type	Center Contact Plating	Connector Style	Frequency - Max [Max]	Body Finish	Body Material	Connector Type
Cinch Connectivity Solutions Trompeter PLR75C-201	M17/176-00002	400 V	-65 ░C	165 °C	Silver	Non-Constant	500	1 Connector, 1 Heat Shrink, 1 Strain Relief	Bayonet Lock	Beryllium Copper	1	Crimp	Three Lug	Crimp	Free Hanging (In-Line), Right Angle	Gold	TRB, Twinaxial/Triaxial	500 MHz	Nickel	Brass	Plug, Male Pin (Concentric)
Cinch Connectivity Solutions Trompeter PLR75C-303	Raychem 7528A5314	400 V	-65 ░C	165 °C	Silver	Non-Constant	500	1 Connector, 1 Heat Shrink, 1 Strain Relief	Bayonet Lock	Beryllium Copper	1	Crimp	Three Lug	Crimp	Free Hanging (In-Line), Right Angle	Gold	TRB, Twinaxial/Triaxial	500 MHz	Nickel	Brass	Plug, Male Pin (Concentric)
Cinch Connectivity Solutions Trompeter PLR75C-224	TWCP-124-3	400 V	-65 ░C	165 °C	Silver	Non-Constant	500	1 Connector, 1 Heat Shrink, 1 Strain Relief	Bayonet Lock	Beryllium Copper	1	Crimp	Three Lug	Crimp	Free Hanging (In-Line), Right Angle	Gold	TRB, Twinaxial/Triaxial	500 MHz	Nickel	Brass	Plug, Male Pin (Concentric)
Cinch Connectivity Solutions Trompeter PLR75C-204	Raychem 10602	400 V	-65 ░C	165 °C	Silver	Non-Constant	500	1 Connector, 1 Heat Shrink, 1 Strain Relief	Bayonet Lock	Beryllium Copper	1	Crimp	Three Lug	Crimp	Free Hanging (In-Line), Right Angle	Gold	TRB, Twinaxial/Triaxial	500 MHz	Nickel	Brass	Plug, Male Pin (Concentric)
Cinch Connectivity Solutions Trompeter PLR75C-308	TRC-75-2	400 V	-65 ░C	165 °C	Silver	Non-Constant	500	1 Connector, 1 Strain Relief	Bayonet Lock	Beryllium Copper	1	Crimp	Three Lug	Crimp	Free Hanging (In-Line), Right Angle	Gold	TRB, Twinaxial/Triaxial	500 MHz	Nickel	Brass	Plug, Male Pin (Concentric)
Cinch Connectivity Solutions Trompeter PLR75C-307	TRC-75-1	400 V	-65 ░C	165 °C	Silver	Non-Constant	500	1 Connector, 1 Heat Shrink, 1 Strain Relief	Bayonet Lock	Beryllium Copper	1	Crimp	Three Lug	Crimp	Free Hanging (In-Line), Right Angle	Gold	TRB, Twinaxial/Triaxial	500 MHz	Nickel	Brass	Plug, Male Pin (Concentric)
